AXIS’s Freeride Rear Wing range with their wider chords are the perfect choice for beginner wingers, windsurfers, and SUP foilers. Focusing on easy lift, stability, and predictable turning. The 440/90, paired with our BSC 1060 front wing, is the popular choice for learning to wing foil. The smaller Rear Wings in this range are perfect for advancing riders looking to progress on larger wings while still being able to turn freely.

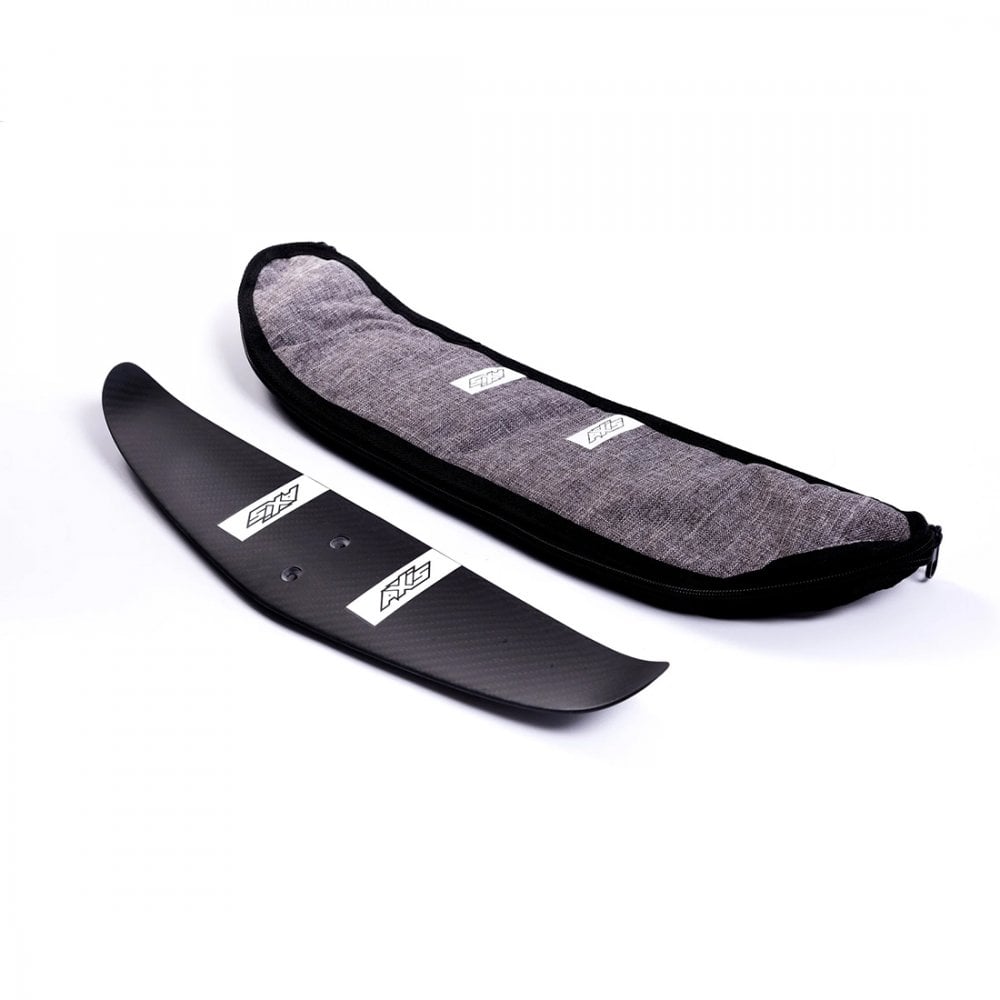

When you purchase any Freeride Rear Wing, AXIS includes an AXIS padded cover with zipper, in heather grey, and AXIS branding, for safer setup, transportation and storage.
AXIS 340 Carbon Rear Wing
The AXIS 340 Carbon Rear Wing is the smallest rear wing AXIS make. Super loose, designed mainly for the 2020 600, and 545 kite wings, but also works well with the 680, 660 surf wings (for a super loose ride)
AXIS 370 Carbon Rear Wing
The AXIS 370 Carbon Rear Wing is the carving specialist. Even looser than the 400 rear wing, it's one of the most maneuverable and performance-oriented rear wings on AXIS's collection.
A must-have with the 750, 680 and 660 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing. And when combined with the ULTRA Short Red fuselage then your ride gets looser than ever!
AXIS 390 GAP Carbon Rear Wing
The AXIS 390 GAP Carbon Rear Wing is a new rear wing addition from AXIS. Different to AXIS' other rear wings, the AXIS 390 GAP rear wing has an extensive flat section in the middle, with turned-down tips.
Many Wing Surfing riders love this rear carbon wing for wing foiling, and it's a great compliment to the 900 and 1000 carbon front wings, for wing surfing. It adds a bit of extra glide and lift while enhancing turning and cruising control.
AXIS 400 Carbon Rear Wing
The AXIS 400 Carbon Rear Wing is the carving specialist. Even looser than the 440 rear wing, it's the most maneuverable and performance-oriented rear wing in AXIS' collection.
A must-have with the 750 and 680 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing. And when combined with the ULTRA Short Red fuselage then your ride gets looser than ever!
AXIS 440 rear wing
The AXIS 440 rear wing is the all-around rear wing that does everything well. It feels looser than the 500mm rear wing, it's playful and overall high performing.
You can combine the 440 rear wing with either the Standard, Short or ULTRA Short Red Fuselages for quicker turning and a looser feel.
AXIS Carbon 500 rear wing
The AXIS Carbon 500 rear wing is the most stable of our rear wings. Ideal for entry-level and all-around riders, the 500 will make your ride as stable as it gets. Suggested as an all-round companion to AXIS' larger front wings (1020, 920).
You can combine the 500 rear wing with either the Standard, Short or ULTRA Short Red Fuselages for quicker turning and looser feel.
AXIS 500 Carbon Anhedral Rear Wing
The AXIS 500 Carbon Anhedral Rear Wing, is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.

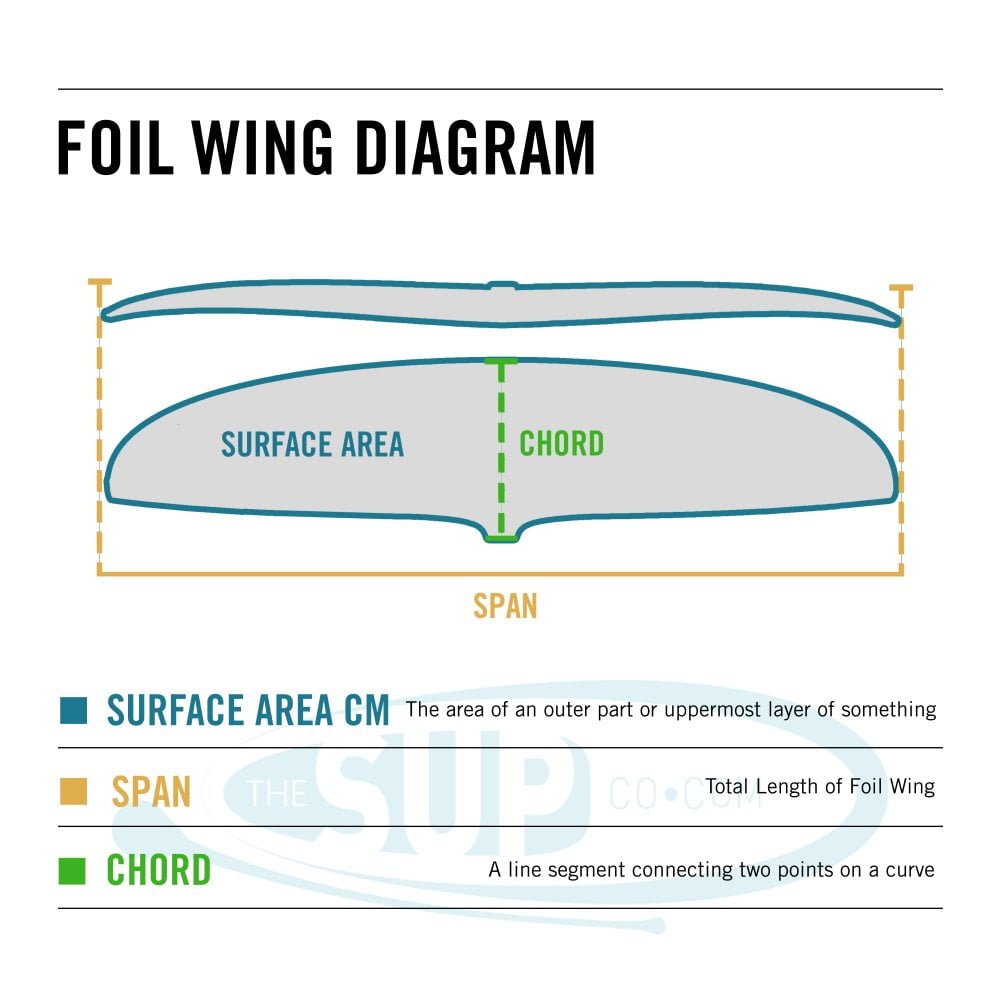

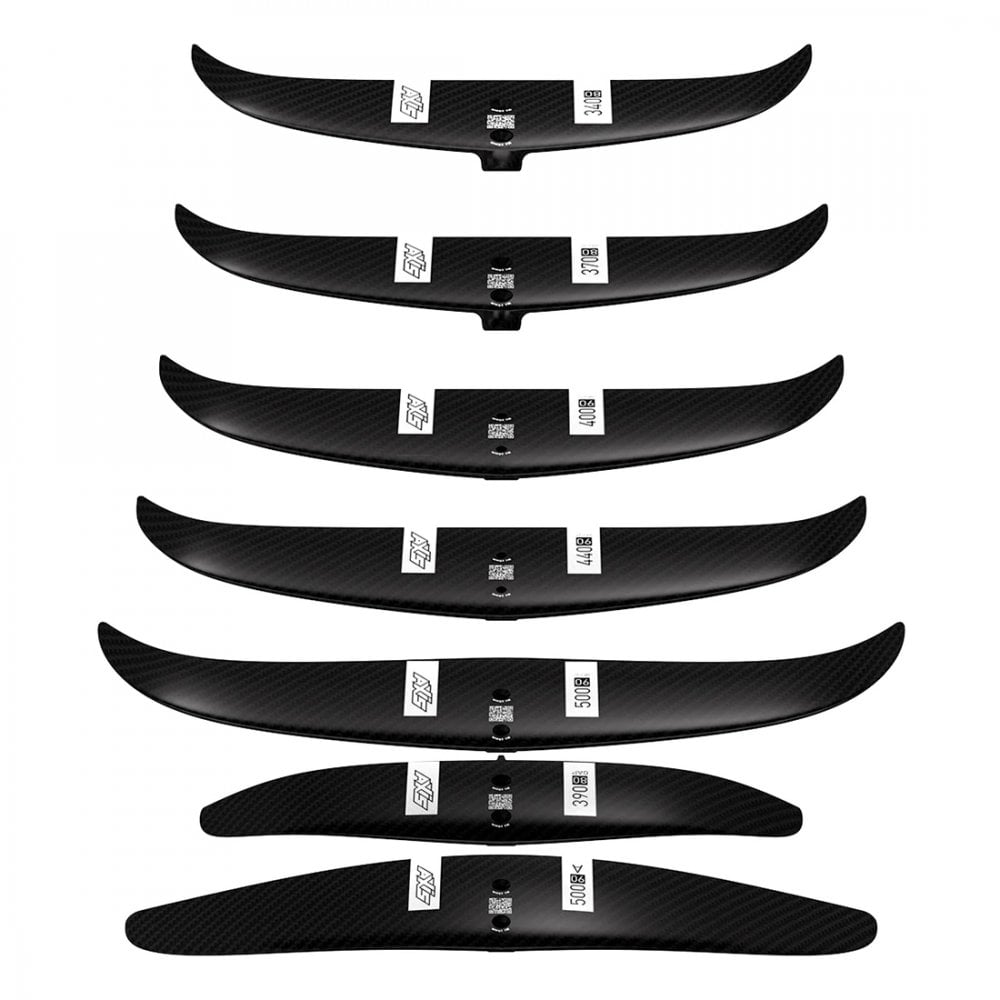

AXIS Rear Wing Size Chart
340
370
390
400
440
500
550A
Wingspan
340 mm / 13.39 in
370 mm / 14.57 in
390 mm / 15.35 in
400 mm / 15.75 in
440 mm / 17.32 in
500 mm / 19.69 in
500 mm / 19.69 in
Chord
80 mm / 3.15 in
90 mm / 3.15 in
80 mm / 3.15 in
90 mm / 3.54 in
90 mm / 3.54 in
90 mm / 3.54 in
90 mm / 3.54 in
Aspect Ratio
5.53
6.01
6.23
5.79
6.37
7.3
7.17
Actual Area
221.01 cm² / 34.26 IN²
239.54 cm² / 37.13 IN²
254.52 cm² / 39.45 IN²
291.18 cm² / 45.13 IN²
318.94 cm² / 49.44 IN²
360.77 cm² / 55.92 IN²
362.33 cm² / 56.16 IN²
Projected Area
209.13 cm² / 32.42 IN²
227.61 cm² / 35.28 IN²
244.26 cm² / 37.86 IN²
276.54 cm² / 42.86 IN²
303.97 cm² / 47.12 IN²
342.55 cm² / 214.35 IN²
348.72 cm² / 54.05 IN²
Volume
113.21 cm³ / 5.53 IN³
123.28 cm³ / 7.52 IN³
134.75 cm³ / 8.22 IN³
175.35 cm³ / 10.70 IN³
192.81 cm³ / 4.97 IN³
130.8 cm³ / 8 IN³
223.43 cm³ / 13.63 IN³
