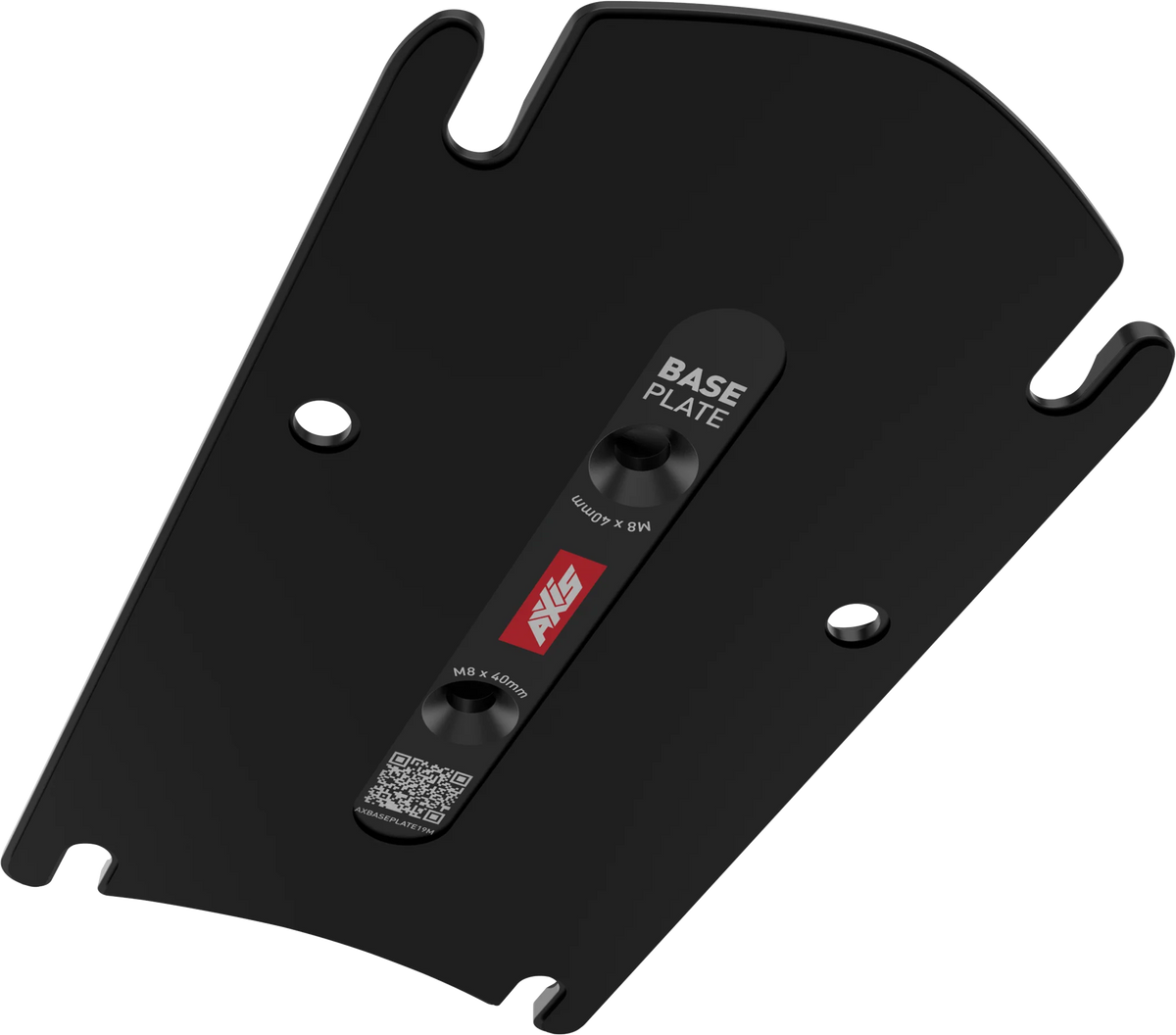

AXIS 19mm Black Foil Mast Base Plate

The AXIS 19mm Foil Base Plate is the completely redesigned board-side connection for the latest black AXIS 19mm Aluminium Foil Mast system. CNC machined from a single billet of aircraft-grade aluminium, the new plate is stiffer, stronger and more refined than the previous AXIS design, while removing material where it is no longer needed.

It is a small component with a significant job. The base plate transfers everything happening at the foil through the mast and into the board, so stiffness and precision at this connection directly affect how solid and predictable the complete foil feels beneath your feet.

For 2026, AXIS has re-engineered that connection rather than simply changing the colour. A tapered mast pocket, cross-stabilising split bolt, narrower plate profile and dedicated foil-assist mounting options make this a meaningful update to the AXIS aluminium mast platform.

Important compatibility note: this new black 19mm base plate is designed for the latest-generation black AXIS 19mm aluminium masts. It is not compatible with the previous-generation red AXIS 19mm aluminium masts.

Why AXIS Redesigned the 19mm Base Plate

The previous AXIS aluminium mast system was already known for being impressively stiff, but there is more to foil stiffness than the mast section alone. The joints at either end of the mast matter enormously, particularly once you introduce larger front wings, higher speeds, powerful carving or foil-assist systems.

The latest AXIS base plate has therefore been redesigned around a more heavily supported mast-to-plate connection. The aim is simple: minimise unwanted movement between board and mast so rider input is transferred more directly into the foil.

On the water that translates into a foil that should feel more connected and predictable, particularly when loading the mast through turns, pumping or powered riding.

Machined From a Single Aluminium Billet

The new base plate is CNC machined from a single solid billet of aircraft-grade aluminium. This gives AXIS precise control over the shape of the plate, mast pocket and reinforcement while retaining the durability that makes an aluminium mast system so practical.

Material has been concentrated where it contributes to stiffness and structural support, while unnecessary material has been removed to keep weight down.

The complete plate is finished in a black anodised coating designed to withstand regular use in both salt and fresh water and to match the new generation of black AXIS aluminium mast components.

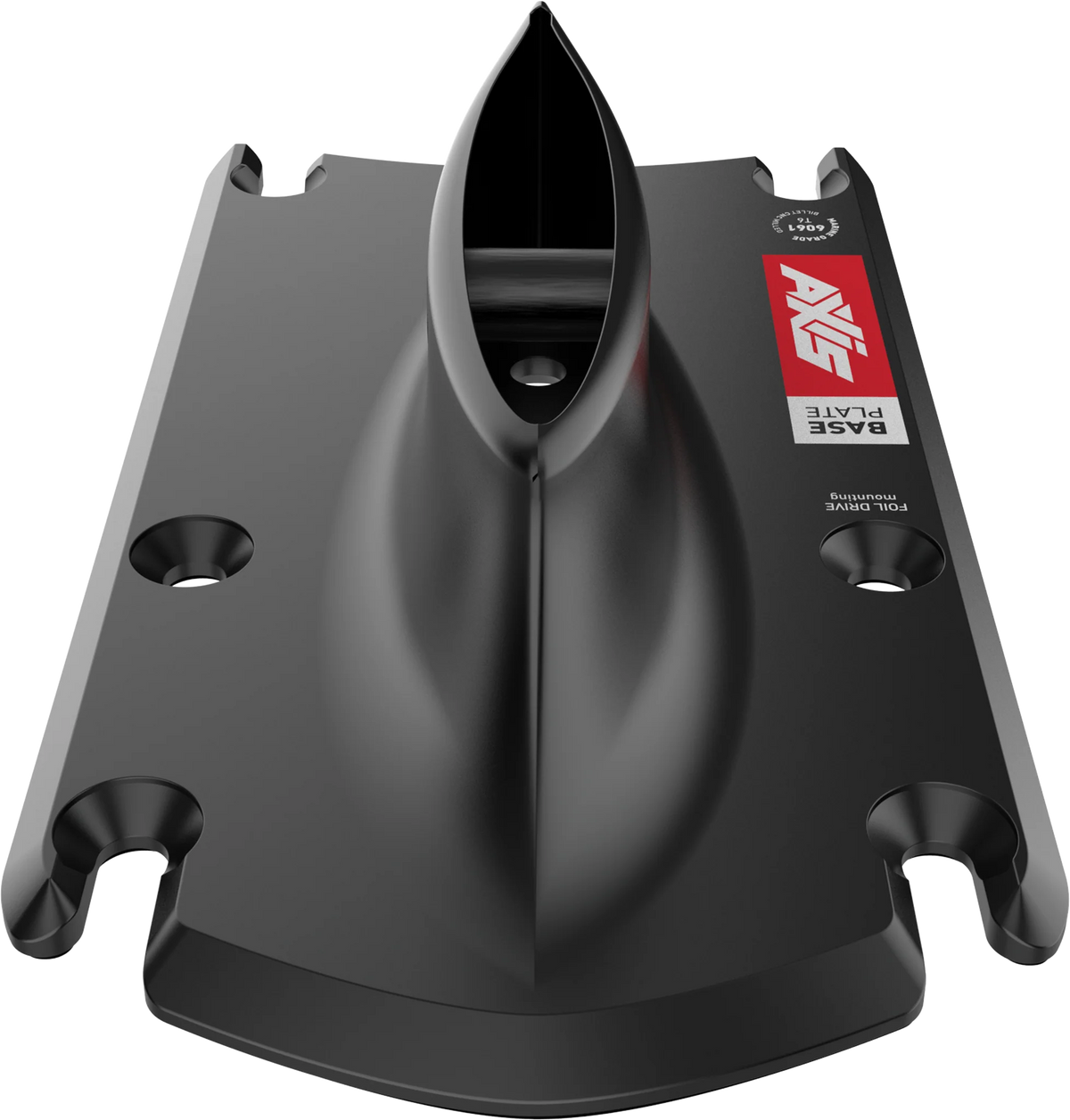

New Tapered Mast Pocket

One of the biggest changes is hidden inside the connection itself. The bevelled mast pocket now uses a tapered profile, increasing lateral support around the mast while reducing material where it does not contribute meaningfully to the structure.

This works together with the redesigned black 19mm aluminium mast to create a firmer and more precise fit between the mast and base plate.

For the rider, that matters because movement at the top of the mast is magnified further down at the foil. Increasing stiffness at this junction helps the complete setup feel more direct rather than allowing energy to disappear through flex in the connection.

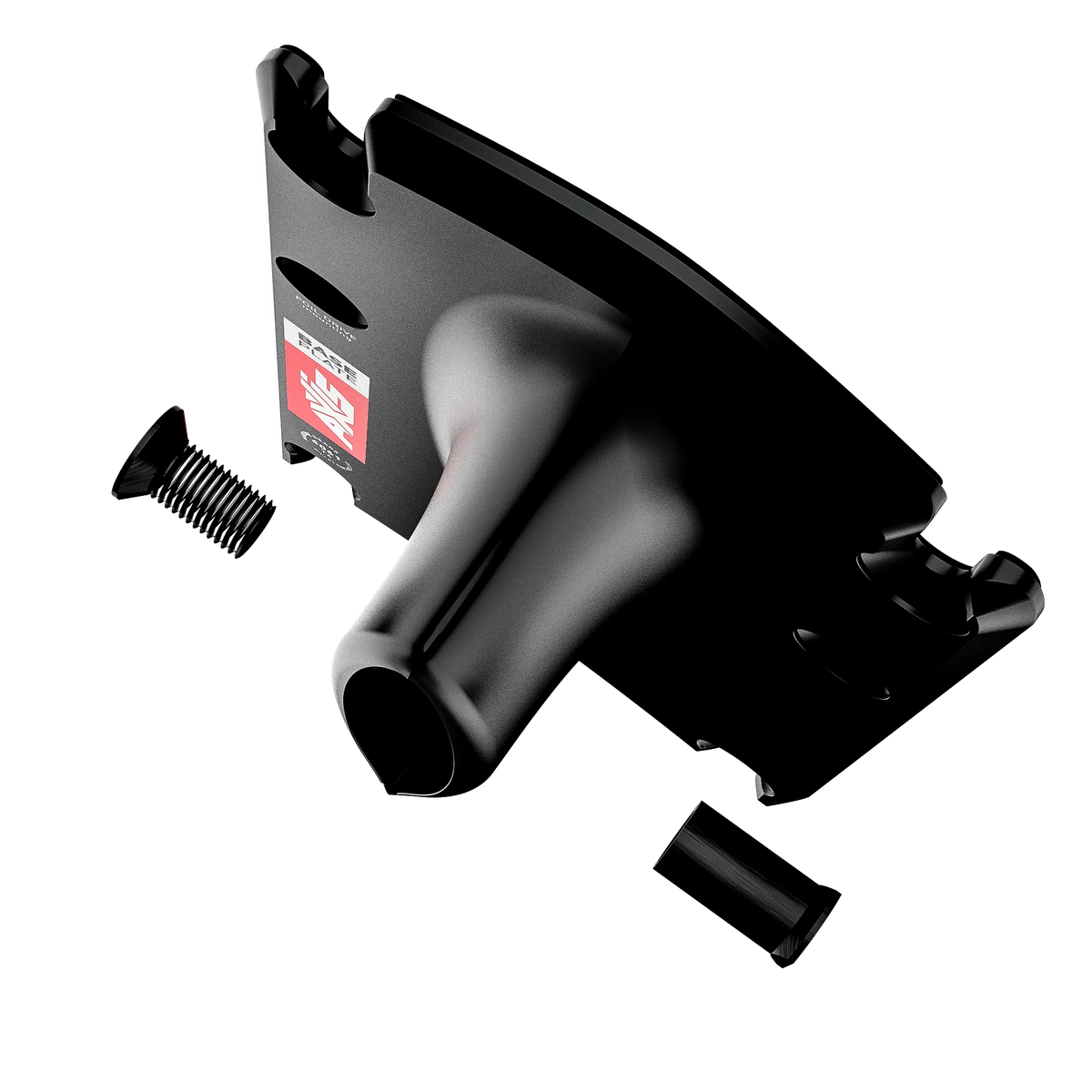

Cross-Stabilising Split Bolt

AXIS has also introduced a split, cross-stabilising bolt that is faired neatly into the bevel of the base plate.

This provides additional support across the mast-to-base connection, helping keep the mast securely located within the plate and improving long-term durability of the joint.

It is particularly relevant for riders generating higher loads through the setup, whether from larger foil wings, harder carving, heavier rider weights or electric foil-assist use.

Narrower Profile for Modern Foil Boards

The overall width of the plate has been reduced. Besides removing unnecessary material, this makes the new base plate better suited to modern boards where the foil tracks may sit within a recessed or trench-style mounting area.

This is particularly useful with boards such as the AXIS Pocket Trench, where a conventional wide base plate can become unnecessarily bulky inside the recessed mounting area.

For more conventional foil boards, the plate retains the standard track-mounted approach, allowing the foil to be positioned fore and aft to achieve the correct balance for your board, foil and riding style.

Designed With Foil Assist in Mind

A particularly useful update is the addition of extra mounting holes for Foil Drive and other compatible foil-assist systems.

Foil assist places additional demands on the board-to-mast connection and often requires additional mounting hardware around the base plate. Building those options directly into the AXIS plate creates a cleaner foundation for riders combining an AXIS aluminium mast with an electric assist system.

If foil assist is part of your setup, you can explore our complete Foil Drive range for systems, batteries, motors and compatible accessories.

Smoother and Safer to Handle

AXIS has also reshaped the rear section of the mast bevel. The previous sharper profile has been replaced by a smoother, less aggressive edge.

It is a relatively small detail, but a welcome one when carrying, assembling and packing away a foil. Foil equipment inevitably gets handled around bare feet, wetsuits, board bags and vehicle interiors, so removing unnecessarily sharp edges makes everyday ownership easier.

Who Is the AXIS 19mm Foil Base Plate For?

• Riders building a new AXIS black aluminium mast setup who need the correct board-to-mast connection.
• Wing, SUP, surf, pump and downwind foilers who value a stiff and dependable aluminium mast platform.
• Foil Drive and foil-assist riders who can make use of the additional mounting options built into the plate.
• AXIS Pocket Trench and recessed-track board owners who benefit from the narrower plate profile.
• Riders choosing aluminium over carbon for its combination of stiffness, durability, modularity and value.

Who Should Not Buy This Base Plate?

If you own an older red AXIS 19mm aluminium mast, do not order this plate as a replacement for your existing base plate. The redesigned mast pocket and connection mean the new black base plate is not backwards compatible with the previous red 19mm mast.

It is also not required for AXIS carbon masts, which use their own board-mount connection, and it is not the correct solution if your board uses a Tuttle or Deep Tuttle mast connection rather than twin foil tracks.

Key Features

• Completely redesigned AXIS 19mm aluminium mast base plate.
• Designed specifically for the latest-generation black AXIS 19mm aluminium masts.
• CNC machined from a single billet of aircraft-grade aluminium.
• Increased stiffness and durability with unnecessary material removed.
• Tapered mast pocket increases lateral support around the mast connection.
• Split, cross-stabilising bolt strengthens the mast-to-base plate junction.
• Designed to maintain a solid and precise mast fit over time.
• Narrower overall plate width suits modern recessed and trench-style foil boards.
• Additional mounting holes provide attachment options for Foil Drive and compatible foil-assist systems.
• Smoother rear bevel improves handling and reduces unnecessarily sharp edges.
• Black anodised finish for durability in salt and fresh water.
• Supplied with mounting screws.

Specifications

Package Includes

• 1 x AXIS 19mm Foil Base Plate
• Required AXIS base plate mounting screws

Please note: mast, Doodad, fuselage, front wing, rear wing, board track hardware and foil-assist components are sold separately unless specifically stated otherwise.

Building the New AXIS Black Aluminium Mast System

The base plate forms the board-side end of AXIS's latest modular aluminium mast platform. For a complete setup you will also need the matching AXIS 19mm Aluminium Foil Mast, the appropriate mast-to-fuselage Doodad, fuselage, front wing, rear wing and compatible hardware.

If you are assembling or refreshing a complete AXIS setup, the AXIS Stainless Steel Screw Set provides a practical selection of spare hardware. Riders looking for the premium hardware option can choose the AXIS Titanium Screw Set.

You can also browse the complete AXIS Foils range for compatible masts, fuselages, wings and replacement components.

AXIS 19mm Base Plate Compatibility Explained

The most important buying point with this product is that black and red AXIS 19mm mast components should not be assumed to be interchangeable.

The latest base plate works as part of the redesigned black aluminium mast system, where the mast and plate have been engineered together around the tapered connection and cross-stabilising hardware. If you have an older red 19mm mast, retain the correct previous-generation base plate for that system.

If you are unsure which generation of AXIS mast you own, contact us before ordering and we can help confirm the correct parts.
