Ride Engine Air Box Mini Electric Pump

The Ride Engine Air Box Mini is a rechargeable electric pump for wing foilers, kiteboarders and inflatable SUP paddlers who want to get on the water without a manual pumping session. Its compact design combines two-stage brushless inflation, an adjustable pressure setting and automatic shut-off, so you can prepare the rest of your kit while it inflates.

Why choose the Air Box Mini?

• Two-stage inflation: starts with high-volume airflow and switches automatically to a high-pressure stage as your kite, wing or SUP firms up.
• Set the target pressure: the digital display monitors PSI and stops the pump automatically at your selected setting, helping avoid guesswork.
• Compact and rechargeable: approximately 38% smaller than the original Air Box, with a built-in 4500mAh battery for inflation away from mains power.
• USB-C convenience: recharge with a suitable USB-C adapter or use the reverse-charging feature to top up another device.
• Multi-sport nozzle kit: four supplied adapters make it useful across many common wing, kite and inflatable SUP valves.

Who is it for?

A practical choice if you regularly inflate wings or kites, travel with inflatable equipment or want to spare your arms before paddling. The 20 PSI maximum also makes it suitable for many inflatable SUPs, provided you have the correct valve adapter and follow your board manufacturer's pressure limit. For occasional use close to home, a manual pump is simpler and does not need charging.

Features that make a difference

Automatic two-stage brushless motors

The Air Box Mini moves air quickly at low pressure before switching to its high-pressure stage. That reduces the manual effort of taking an inflatable from flat to firm. Actual inflation times depend on the inflatable's volume, required PSI and battery charge.

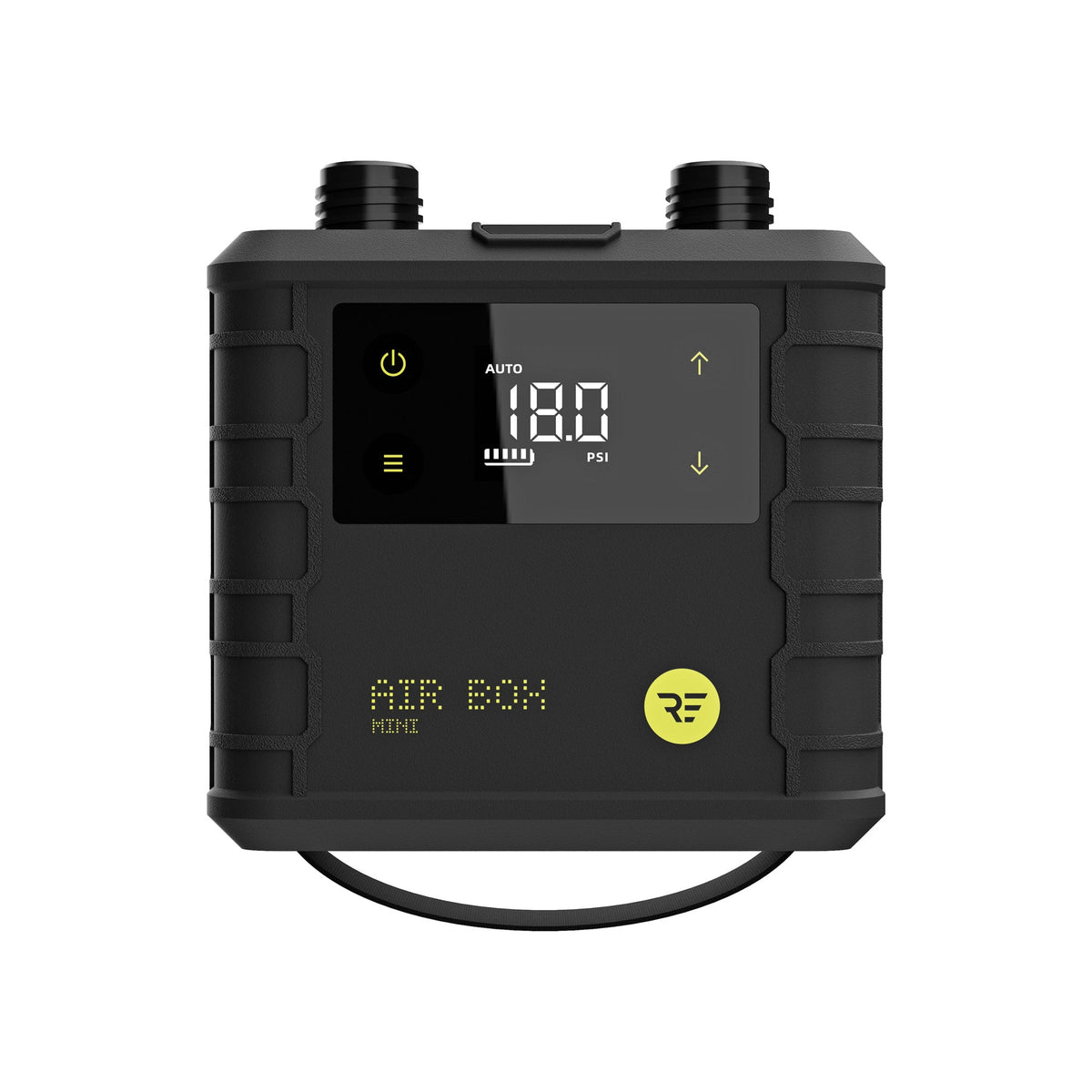

Digital pressure setting and automatic stop

Set the target pressure for the equipment you are inflating and monitor progress on the display. The pump automatically stops at that setting; always use the maximum PSI specified by your kite, wing or SUP manufacturer rather than the pump's own maximum.

Rechargeable power and reverse charging

Its 14.8V, 4500mAh lithium-ion battery is designed for multiple inflations between charges. Ride Engine's published inflation counts differ between sections of its website, so it is more useful to plan around your actual equipment size and pressure. USB-C reverse charging also allows the Mini to function as a backup power source for compatible devices.

Technical specifications

• Model: Ride Engine Air Box Mini Electric Pump
• Manufacturer SKU: 3260550000
• Maximum pressure: 20 PSI (approximately 1.4 bar)
• Inflation: automatic two-stage, high volume then high pressure
• High-volume stage limit: 1.8 PSI (manufacturer specification)
• Motor type: brushless DC
• Battery: rechargeable lithium-ion, 4500mAh, 14.8V
• Dimensions: 139 × 125 × 69mm (manufacturer's product specification)

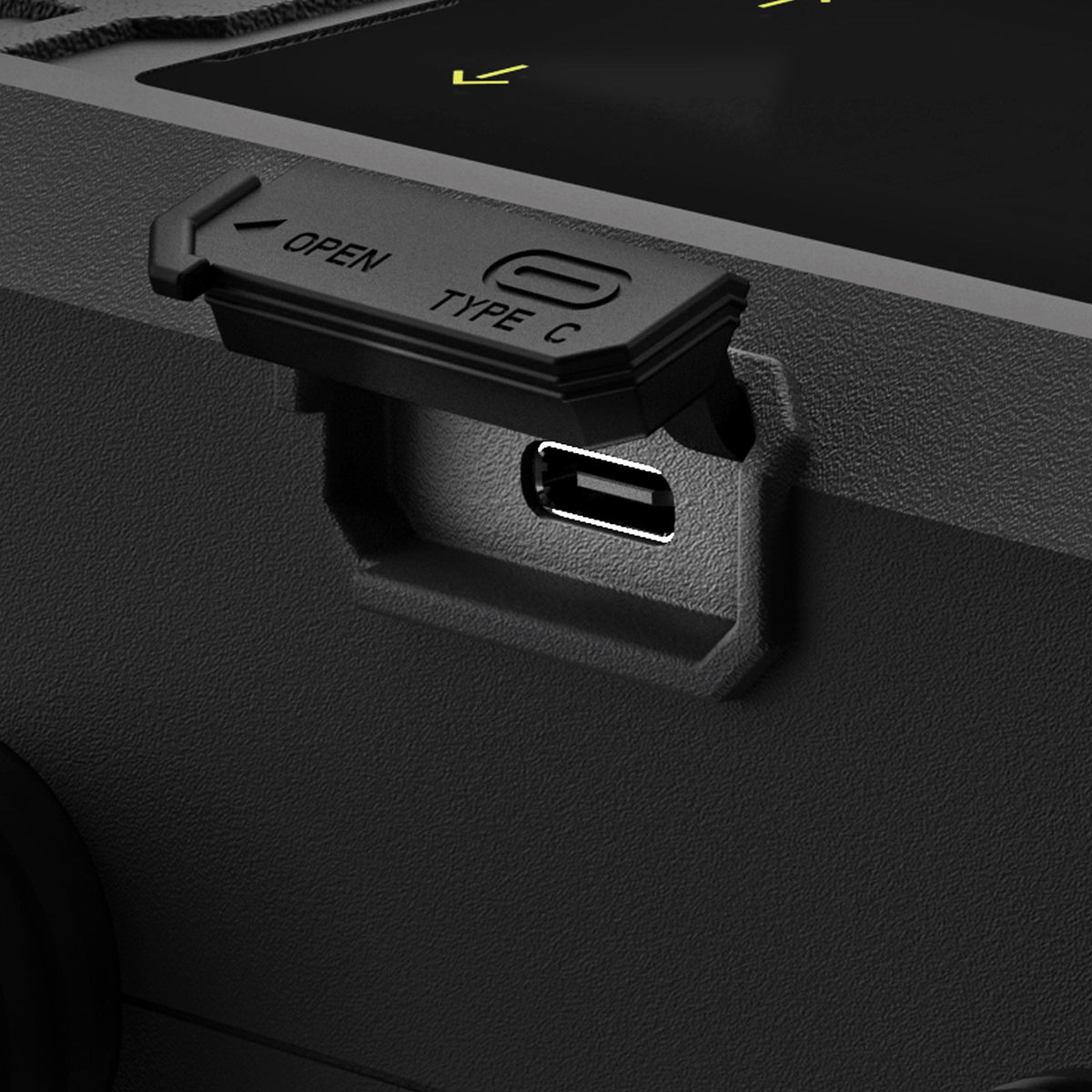

• Charging: USB-C, with reverse-charging function

What's included?

• Ride Engine Air Box Mini electric pump
• 3ft (approximately 90cm) inflation hose
• Four nozzle adapters
• Carry bag
• USB-C charging cable

Not included: a wall charging plug. Ride Engine recommends a good-quality USB-C charger rated below 70W. Check the appropriate nozzle-to-valve fit before inflating, particularly for less common valve types.

Setup and care

Charge the pump, attach the correct hose and adapter, connect it securely to the valve, then set the pressure required by your equipment. Keep the unit on a stable, dry surface and protect the electrical connections from water and sand. No waterproof IP rating has been verified for this model, so it should not be treated as waterproof.

Frequently asked questions

Will it inflate an inflatable paddleboard?

Yes, provided the SUP has a compatible valve and its recommended inflation pressure is within the Air Box Mini's 20 PSI maximum. Larger boards generally take longer to inflate than wings or kites.

How many wings can it inflate per charge?

It is designed for multiple inflations, but battery life depends on wing size, starting pressure, target PSI and conditions. Ride Engine publishes different estimates, so a fixed number should not be relied on for every session.

Do I need to buy a charger?

A USB-C cable is included, but no wall plug. Use a suitable USB-C charging adapter below 70W, as recommended by Ride Engine.

Can it charge a phone?

Yes. Reverse charging allows the pump to provide power to compatible devices via USB-C. Availability of charging for a particular device depends on the cable and device requirements.
