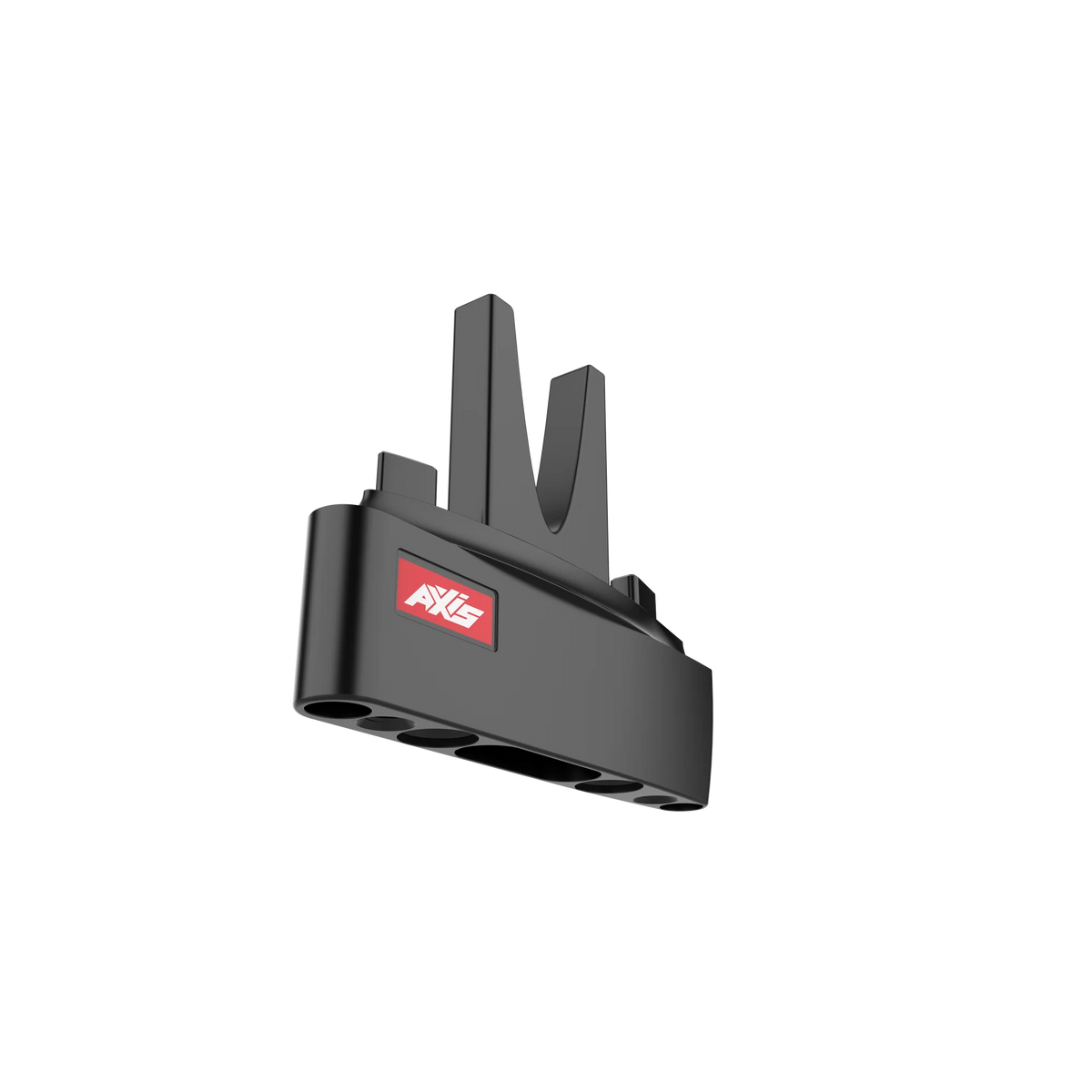

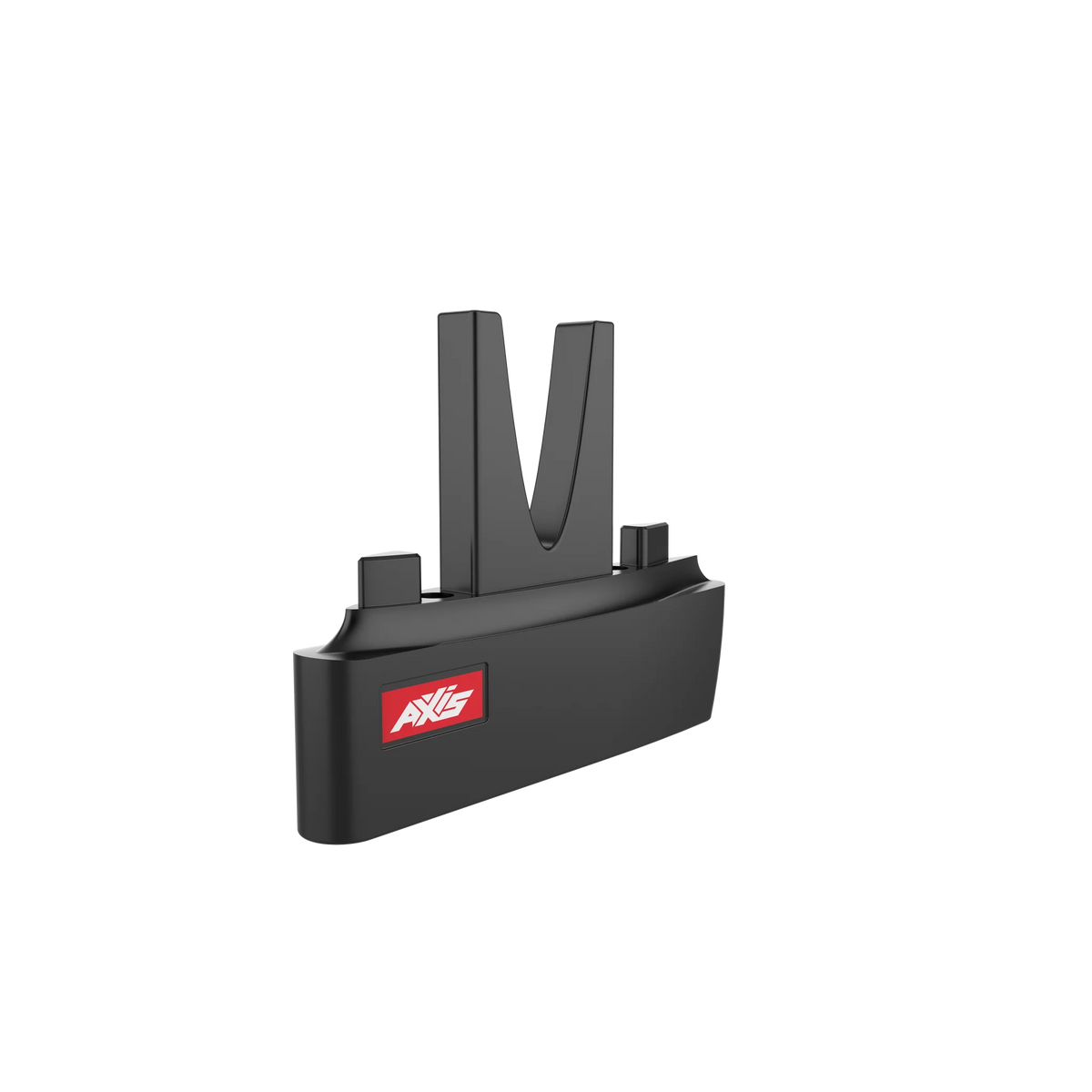

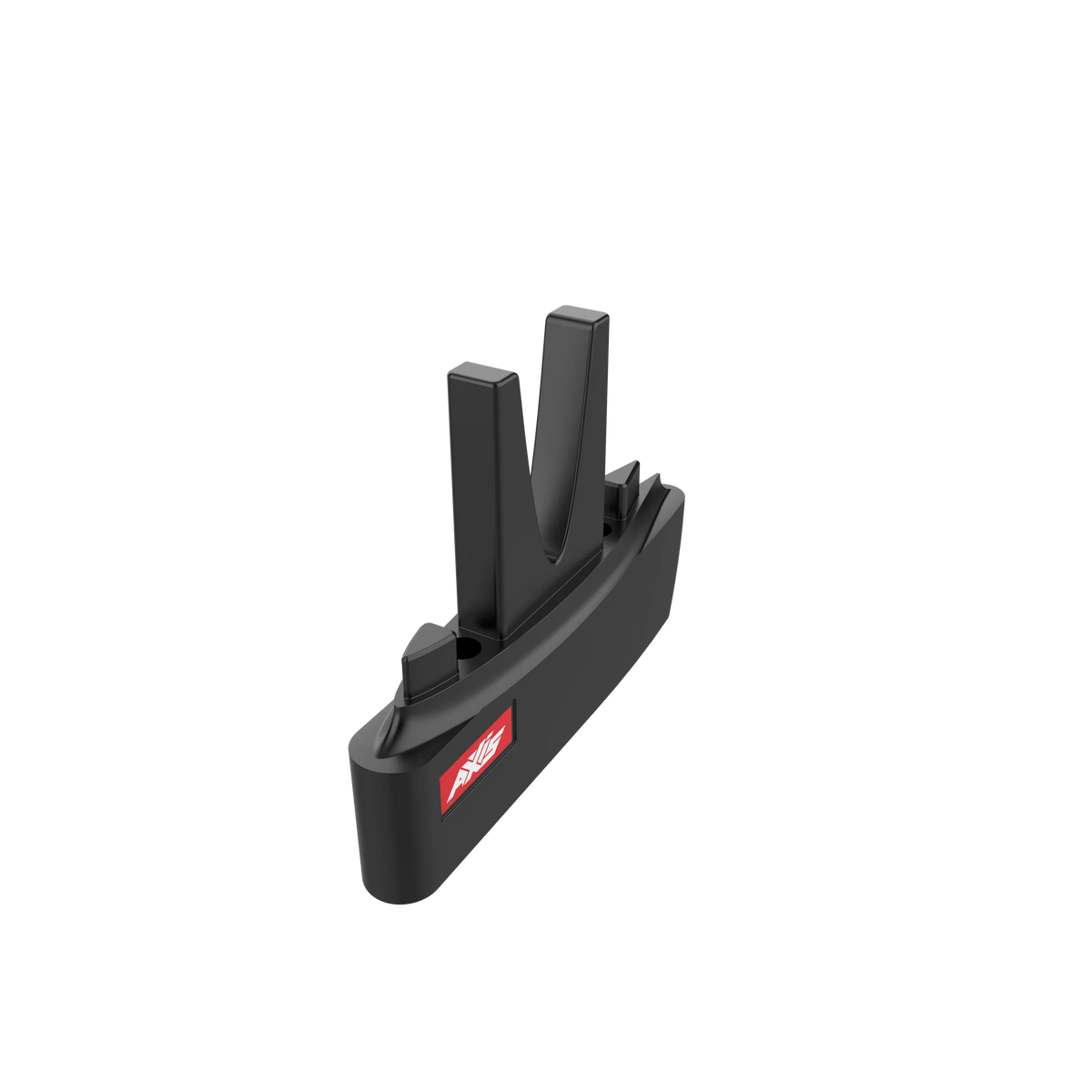

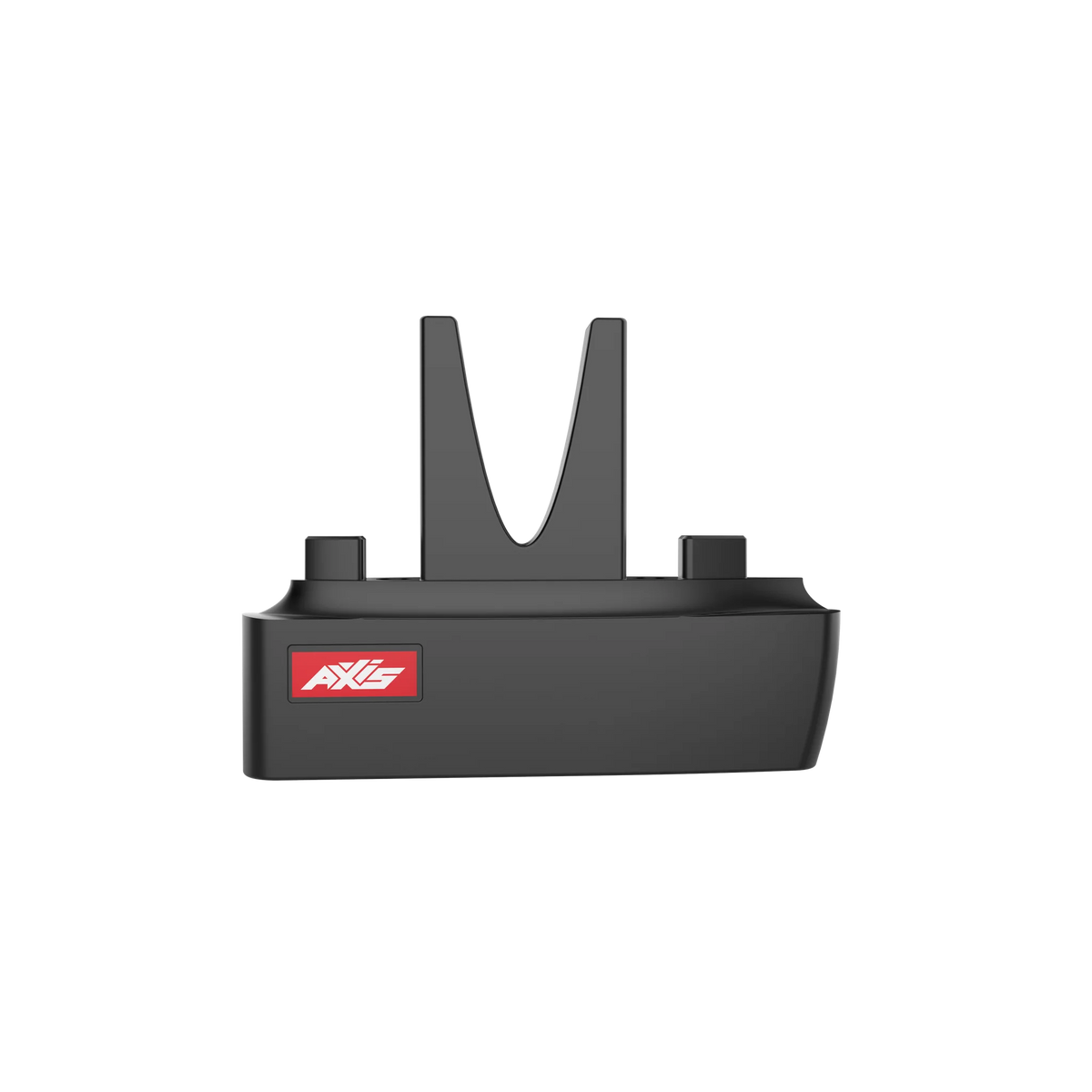

AXIS Fatty Fuselage 19mm Mast Doodad Adapter

The AXIS FATTY Fuselage to 19mm Mast Adapter – or FATTY Doodad is a particularly useful addition to the AXIS system because it allows a 19mm AXIS aluminium mast to connect directly to an AXIS FATTY fuselage. Until now, moving into the FATTY platform effectively meant committing to the dedicated FATTY carbon mast as well. This adaptor opens up a considerably more accessible route into the stiffer FATTY fuselage system.

For riders wanting to use large, high-aspect front wings, build a powerful pump or light-wind setup, or simply increase stiffness through the fuselage without immediately investing in a FATTY carbon mast, this is an important component. It works with the latest black AXIS 19mm aluminium masts and remains compatible with previous-generation red 19mm aluminium masts.

What Does the AXIS FATTY Doodad Do?

The FATTY Doodad sits between your AXIS 19mm aluminium mast and an AXIS Advance+ FATTY Black Fuselage. It converts the mast-to-fuselage connection so that the standard AXIS 19mm aluminium mast platform can be used with the larger and stiffer FATTY fuselage interface.

That distinction is important. A normal AXIS 19mm Doodad connects an aluminium mast to a standard compatible Black Series fuselage. This FATTY-specific version is required when you want to connect a 19mm aluminium mast to a FATTY fuselage.

A More Accessible Route Into the AXIS FATTY System

The FATTY platform was developed to deal with the increased loads created by very large and very high-aspect foil wings. As wings become wider and more efficient, maintaining stiffness through the mast and fuselage becomes increasingly important because unwanted flex can waste pumping energy and make a large foil feel less precise.

The dedicated AXIS Power Carbon FATTY Mast remains the premium route when maximum system stiffness is the priority. However, not every rider needs or wants to make that investment immediately. Pairing this adaptor with an AXIS 19mm Aluminium Foil Mast gives you a much more cost-effective way to access the FATTY fuselage platform while retaining AXIS' proven modular aluminium mast system.

It is also useful for existing AXIS aluminium mast owners. If you already have one or more 19mm mast lengths, you can move into the FATTY fuselage system without replacing those masts.

Why Choose the FATTY Fuselage Platform?

The AXIS Advance+ FATTY Black Fuselages are wider and stiffer than the conventional AXIS Black fuselage platform. They were created to provide the backbone required by larger-span foils, where loads through the complete foil increase substantially.

This makes the FATTY route particularly relevant for:

• Large and very high-aspect front wings.
• Pump and dock-start foiling where efficient energy transfer matters.
• Light-wind wing foiling with bigger foils.
• Downwind and glide-focused setups.
• Heavier riders placing greater loads through their foil.
• Riders using the larger AXIS Fireball Front Wings.

The FATTY fuselage remains part of the AXIS Black wing ecosystem, so it can accept compatible Black Series front wings and the standard AXIS rear-wing range. What changes is the mast-to-fuselage interface, which is why this dedicated FATTY Doodad is required when using a 19mm aluminium mast.

Redesigned 2026 Doodad Connection

This is not simply an older adaptor reshaped to fit the FATTY fuselage. The latest AXIS Doodad design incorporates additional supporting legs around the mast junction to increase lateral stiffness and reduce the torsional loads transferred into the mast sidewalls.

The result is a more supported mast-to-fuselage connection when the foil is heavily loaded through pumping, carving or powered riding.

The drop-on fairing also spreads loading across a broader section of the connection rather than concentrating stress around a smaller area. Its tapered external profile has been developed using lessons from AXIS' higher-performance carbon mast programmes to improve water flow through the mast-to-fuselage junction and reduce unnecessary turbulence and drag.

Who Should Choose the AXIS FATTY Doodad?

• Existing AXIS 19mm aluminium mast owners who want to move onto a FATTY fuselage.
• Riders building a more affordable FATTY setup without immediately purchasing the dedicated FATTY carbon mast.
• Heavier riders and riders using bigger wings who want the increased stiffness and load capacity of the FATTY fuselage platform.
• Pump, downwind and light-wind riders using high-aspect foils where maintaining stiffness through the system becomes increasingly important.
• Existing owners of older red AXIS 19mm aluminium masts who want to retain their current mast while moving to a newer FATTY fuselage.

Who Probably Does Not Need It?

If you are using a conventional AXIS Black Series fuselage, you need the standard AXIS mast-to-fuselage Doodad, not this FATTY version.

Likewise, if you are using an AXIS Power Carbon FATTY Mast, the mast connects directly to the FATTY fuselage and this aluminium-mast adaptor is not required.

For riders using smaller or more conventional foil setups, there may also be little reason to move to the FATTY platform at all. The standard Black fuselage system remains lighter and highly capable. FATTY makes most sense where wing span, rider weight or riding style creates enough load for the additional stiffness to offer a genuine advantage.

Compatibility

Key Features

• Connects AXIS 19mm aluminium masts to AXIS FATTY fuselages.
• Introduced for the 2026 AXIS aluminium mast system.
• Creates a lower-cost entry point into the AXIS FATTY platform.
• Compatible with the latest black AXIS 19mm aluminium masts.
• Backward compatible with previous-generation red AXIS 19mm aluminium masts.
• Additional support legs increase lateral stiffness at the mast connection.
• Designed to reduce torsional loads and stress on the mast sidewalls.
• Drop-on fairing distributes loading more effectively through the connection.
• Tapered profile improves water flow around the mast-to-fuselage junction.
• Black anodised finish to complement the latest AXIS aluminium mast system.
• Supplied with mounting screws.

Specifications

Package Includes

• 1 x AXIS FATTY Fuselage to 19mm Mast Adapter / Doodad
• Required Doodad mounting screws

Please note: mast, fuselage, base plate, front wing, rear wing and other foil components are sold separately.

Building an AXIS FATTY Aluminium Setup

A typical setup using this adaptor would combine an AXIS 19mm Aluminium Foil Mast, this FATTY Doodad and an AXIS Advance+ FATTY Black Fuselage. You can then select a compatible AXIS Black Series front wing and AXIS rear wing to suit your riding.

For riders chasing extreme glide and efficiency, the larger AXIS Fireball Front Wings are one of the clearest examples of where the additional FATTY platform stiffness becomes useful.

You can also browse our complete AXIS Foils range for compatible masts, fuselages, wings and replacement hardware.

FAQs
