AXIS Surge 1240 Buying Guide: Surge vs PNG V2 1300 vs Spitfire 1180
The arrival of the AXIS Surge 1240 changes the conversation around big AXIS front wings.
Until now, riders looking for lots of low-speed lift, easy pumping and accessible glide would naturally have considered wings such as the AXIS PNG V2 1300 or Spitfire 1180. Riders wanting more outright glide and downwind efficiency might have moved towards Fireball.
The Surge 1240 creates another option. It brings considerably more lift and pumping ability into the Surge family, but crucially it is still designed to roll, carve and change direction like a Surge rather than simply travelling efficiently in a straight line.
That makes it a particularly interesting front wing for SUP foiling, downwind progression, parawing, light-wind wing foiling, dock starting, pumping and Foil Drive-assisted riding.
In this guide we will look at where the new Surge 1240 sits in the wider AXIS Surge front wing range, how it compares with the AXIS PNG V2 1300 and AXIS Spitfire 1180, and which foil makes most sense for different riders and conditions.
The short answer: which AXIS front wing should you choose?
| Front wing | Best for | Choose it if... |
|---|---|---|
| AXIS Surge 1240 | SUP foil, parawing, downwind crossover, light-wind winging, Foil Drive, pumping | You want lots of lift and glide but still want to carve, redirect and surf the foil |
| AXIS PNG V2 1300 | Pumping, dock starts, tiny bumps, light wind, beginner downwind | You value very low-speed support, easy pumping and staying on foil above everything else |
| AXIS Spitfire 1180 | Progression, accessible SUP/downwind, light-wind winging and general crossover | You want the calmest, most predictable and confidence-building ride |
Our simplest recommendation: choose the Surge 1240 if you want one large front wing that combines genuine low-end performance with a much more dynamic ride. Choose the PNG V2 1300 if pumping and ultra-low-speed efficiency are your priority. Choose the Spitfire 1180 if ease, predictability and progression matter most.
Why the Surge 1240 is a significant addition
The Surge started life as AXIS's more surf-driven front wing family. The smaller sizes were primarily about speed, rail-to-rail response, back-foot pressure and putting the foil where you wanted it on a wave.
As AXIS has added the 1080, 1150 and now the 1240, that definition has changed.
The bigger Surge wings progressively increase in aspect ratio. In plain English, AXIS has made the larger wings proportionally longer and more efficient rather than simply scaling the same shape upwards.

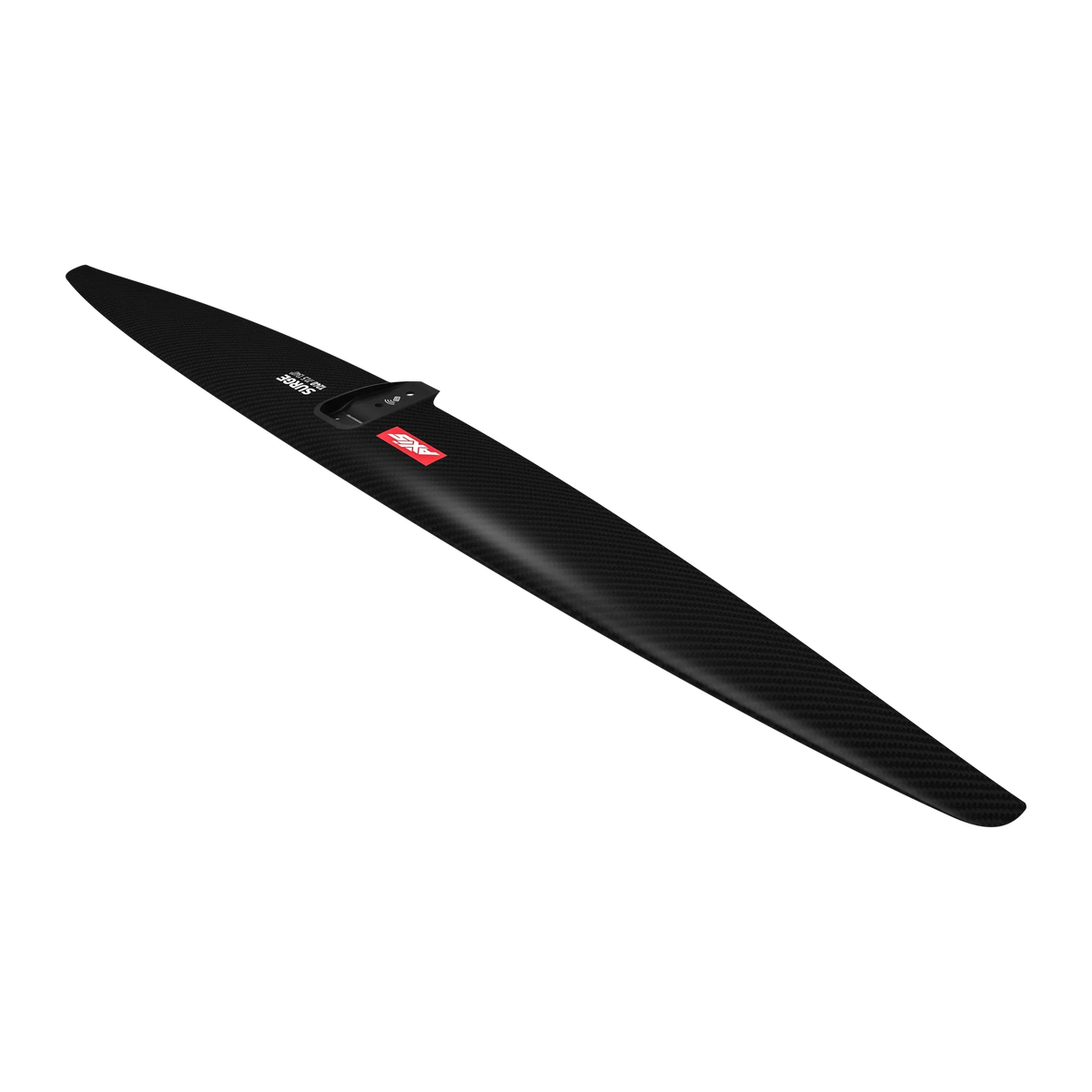

The Surge 1240 has a 1,240 mm wingspan, a 142 mm maximum chord and an aspect ratio of 11.48. It uses Ultra High Mod reinforced carbon construction and mounts to AXIS's Black-series fuselage system.
Why does that matter?
Normally when you make a foil substantially bigger to create more low-speed lift, it becomes slower to roll from one side to the other. It can start to feel like a large aeroplane wing beneath the board: fantastic for getting going, but less exciting once you are flying.
The 1240 is AXIS's attempt to avoid that trade-off.
You get the additional lift, glide and relaxed pumping rhythm expected from a large foil, but with much more emphasis on roll, carving and manoeuvrability than you would expect from a wing aimed at the same conditions.
What does aspect ratio actually mean?
Aspect ratio gets mentioned constantly in foil specifications, but it is often poorly explained.
A higher-aspect foil generally has a longer, narrower outline. This tends to reduce induced drag and improve glide and efficiency.
That is why many dedicated downwind and pump foils have very high aspect ratios.
The downside is that extremely high-aspect wings can become harder to roll into a turn and may require more speed or more precise technique.
The Surge 1240's 11.48 aspect ratio puts it firmly into an efficient, glide-oriented shape, but its planform and surf-led design are intended to retain more roll and carving ability than a dedicated straight-line downwind wing.
That distinction is central to understanding the Surge 1240.
Where the Surge 1240 sits in the full AXIS Surge range
The Surge now stretches from the compact 740 all the way to the 1240. Importantly, the number in the Surge name refers to wingspan in millimetres, not surface area.
| Surge size | General direction | Best suited to |
|---|---|---|
| Surge 740 | Very small, fast and precise | Tow, kite, advanced surf and highly powered riding |
| Surge 780 | Compact surf performance | Lighter riders, stronger wind and faster waves |
| Surge 830 | Fast, lively surf foil | Prone, surf-focused winging and advanced riders |
| Surge 890 | Surf and wing crossover | Wave riding, parawing and competent lighter riders |
| Surge 950 | All-round performance sweet spot | Wing, surf, parawing and Foil Drive crossover |
| Surge 1010 | More support without losing the Surge feel | Heavier riders, smaller waves and lighter wind |
| Surge 1080 | Large, playful crossover wing | Parawing, light wind and SUP/downwind progression |
| Surge 1150 | Glide and low-speed lift | Heavier riders, SUP foil and easier open-water starts |
| Surge 1240 | Maximum Surge lift and glide | SUP foil, downwind, pump, dock start, parawing and light-wind crossover |
The important change happens towards the larger end of the range. A Surge 740 and Surge 1240 share a design philosophy, but they serve very different jobs.
The 1240 is not simply the Surge for a heavier version of the same rider. It opens the family up to disciplines where easy starts, pumping and long connections become equally important as turning.
Who is the AXIS Surge 1240 for?
The Surge 1240 makes most sense for riders who have historically wanted the lift of a big foil but have been frustrated by how locked-in big foils can feel.
SUP foilers
This could be one of the most interesting applications.
SUP foiling needs enough low-speed lift to get the board released from the water, particularly in smaller UK swell where there may not be a powerful Hawaiian-style lump doing the work for you.
Once flying, however, many riders do not simply want to travel straight downwind. They want to carve swell, turn back towards breaking sections, pump between bumps and actually surf.
The Surge 1240 is designed around exactly that crossover.
If you previously felt the Surge 1010 or 1150 needed too much initial speed, but a PNG V2 felt more glide-oriented than you wanted once flying, the 1240 deserves serious consideration.
Downwind riders
The Surge 1240 is not AXIS's pure point-A-to-point-B downwind race wing. AXIS has other foils for that job.
What it offers is a more playful interpretation of downwind riding.
Choose it if you want to catch bumps relatively easily, carry through flatter sections, then carve across the swell rather than simply chasing maximum straight-line glide.
For UK coastal downwind conditions, where swell is often shorter-period, more confused and less organised than many famous international downwind venues, that manoeuvrability can be genuinely useful.
Parawing
The Surge family already makes plenty of sense for parawing because once the parawing is packed away, the foil itself becomes the star of the session.
The 1240 adds a useful light-wind and heavier-rider option.
It gives more help getting flying and staying flying while still allowing the rider to turn through bumps and use the swell rather than feeling locked into a straight line.
Light-wind wing foiling
A larger front wing can transform marginal wing conditions.
The catch is that many very large light-wind wings become boring once the wind picks up or once you find a piece of swell to surf.
The Surge 1240 offers another answer.
It should appeal to riders who want early flight and greater low-end range but still want to gybe aggressively, carve and use wind swell once flying.
Foil Drive and foil assist
The Surge family also makes a lot of sense with powered foil assist.
A motor can remove much of the difficulty of reaching take-off speed, allowing riders to use foils that are faster and more responsive once flying.
The 1240 goes in the opposite direction slightly: it gives you plenty of natural lift as well, which can allow lower-power starts, easier transitions onto foil and useful pumping once the motor is reduced or switched off.
For riders interested in combining foil assist with SUP-style wave riding, swell chasing or longer pump connections, it is a particularly interesting size.
AXIS Surge 1240 vs PNG V2 1300
This is probably the most important comparison.
The AXIS PNG V2 1300 is one of the obvious choices for riders wanting easy lift, pump efficiency and low-speed glide.
The PNG V2 1300 has a 1,300 mm span, 1,632 cm² surface area and approximately 10.36 aspect ratio. Its foil section produces plenty of lift at low speed and it has been designed around pumping, dock starts, weak swell, light-wind winging and accessible downwind riding.
The Surge 1240 attacks the same problem from a different angle.
| Characteristic | Surge 1240 | PNG V2 1300 |
|---|---|---|
| Primary emphasis | Glide + carving | Lift + pump efficiency |
| Span | 1240 mm | 1300 mm |
| Aspect ratio | 11.48 | Approx. 10.36 |
| Low-speed lift | Excellent | Exceptional |
| Pumping | Excellent, relaxed cadence | One of its strongest attributes |
| Glide | Excellent and relatively fast | Excellent, particularly at lower speed |
| Acceleration | More performance focused | Smooth and accessible |
| Rail-to-rail turning | Major strength | Good for a pump-focused foil |
| Surf feel | Much stronger emphasis | Secondary to pumping and glide |
| Beginner friendliness | Better for an improver | More forgiving for pump/downwind progression |
Choose the Surge 1240 over the PNG V2 1300 if...
- You want to carve and redirect the foil more aggressively.
- You want a higher cruising speed once flying.
- You are SUP foiling and want to surf the swell rather than simply stay on foil.
- You are parawinging and want a foil that comes alive once the parawing is packed away.
- You already have decent foil control and want something more dynamic.
- You want one large foil to cover several disciplines.
Choose the PNG V2 1300 over the Surge 1240 if...
- Your main goal is flat-water pumping.
- You are learning dock starts.
- Your priority is getting flying at the lowest possible speed.
- You want maximum forgiveness when recovering from a poor pump.
- You are learning downwind and value stability over aggressive turning.
- You spend lots of time in genuinely tiny bumps or marginal light wind.
The difference is not that one is better.
The PNG V2 1300 makes keeping the foil flying the priority. The Surge 1240 makes what you can do once flying the priority.
AXIS Surge 1240 vs Spitfire 1180
The AXIS Spitfire 1180 is another very important comparison because it has long been one of the most accessible large AXIS front wings.
The Spitfire 1180 was specifically developed to give larger riders and riders in marginal conditions a bigger, easier Spitfire.
It differs slightly from the smaller Spitfires by using increased camber, creating more lift. The result is a foil that comes up easily, has predictable pitch characteristics, recovers well from breaches and tip-outs, and feels reassuring at lower speeds.
It has therefore become useful for SUP foiling, beginner downwind riding, dock starting, pumping and light-wind winging.
The Surge 1240 represents a newer interpretation of that same big-wing crossover idea.
| Characteristic | Surge 1240 | Spitfire 1180 |
|---|---|---|
| Main feel | Fast, efficient and surf-driven | Calm, smooth and predictable |
| Low-speed lift | Very strong | Very good |
| Pumping | Easier and more efficient | Easy and forgiving |
| Glide | Stronger | Good slower-paced glide |
| Roll response | Much more dynamic | Smooth and controlled |
| Turning | More surf-oriented | Predictable and progressive |
| Best rider | Improver to advanced | Beginner/improver to intermediate |
| Best use | SUP, parawing, carving downwind, versatile big-wing riding | Progression, easy downwind, light wind and confidence |
Choose the Surge 1240 over the Spitfire 1180 if...
- You already have good foil control.
- You want more pumping range and glide.
- You want a big foil that still rolls quickly into turns.
- You want to progress from simply riding swell to actively surfing it.
- You find your existing large foil too locked-in.
- You want a more modern long-term progression option.
Choose the Spitfire 1180 over the Surge 1240 if...
- You are relatively new to foiling.
- You value stability and predictability.
- You want a foil that gives plenty of warning before things go wrong.
- You are learning downwind or SUP foil techniques.
- You prefer smooth, progressive turns rather than a particularly lively foil.
For us, this is one of the clearest distinctions.
The Spitfire 1180 is the easier teacher. The Surge 1240 is the more capable progression wing.
Is the Surge 1240 replacing the Spitfire 1180?
Not necessarily.
Newer does not automatically mean better for every rider.
A customer buying their first large AXIS foil may actually progress faster on the Spitfire because it asks less from them.
A confident rider already controlling pitch, pumping and linking bumps may very quickly appreciate the additional speed, roll and efficiency of the Surge 1240.
That is why we would not simply tell every Spitfire rider to replace their wing.
If your Spitfire 1180 is doing exactly what you need, keep riding it.
If you are beginning to feel that it is limiting your ability to pump further, accelerate, carve tighter or redirect on swell, the Surge 1240 becomes a logical upgrade.
What about the AXIS Fireball 1350?
Although the main buying decision here is Surge versus PNG V2 versus Spitfire, the Fireball 1350 deserves a mention.
Fireball moves further towards outright efficiency, downwind glide and covering distance.
If your goal is to get from one piece of ocean to another using the least energy possible, a Fireball-style foil remains extremely relevant.
The Surge 1240 is different.
It sacrifices some of that pure glide-first emphasis in exchange for easier roll, more forgiving pitch behaviour and a much more surf-oriented feel.
Think of it this way:
- PNG V2 1300: pump and stay flying.
- Spitfire 1180: make foiling easier and more predictable.
- Surge 1240: get the big-wing lift, then actually surf it.
- Fireball 1350: maximise efficient open-water glide.
For a wider explanation of these families, read our AXIS Surge vs Spitfire vs Fireball vs PNG V2 comparison guide.
Which wing is best for SUP foiling?
For many established SUP foilers, we think the Surge 1240 is now one of the most interesting options in the AXIS range.
A SUP foil needs to solve two very different problems.
First, it must produce enough lift to get a relatively large board and rider flying from paddle power and swell energy.
Second, once flying it needs to turn, pump and carry through weak sections without constantly fighting its own span.
Traditionally there has been a compromise.
Choose more area and getting up becomes easier, but the foil becomes harder to turn. Choose a smaller, faster foil and it feels great once flying, but getting onto foil becomes considerably harder.
The 1240 tries to narrow that gap.
For a heavier SUP foiler, a rider using a conventional SUP foil board rather than an ultra-narrow downwind board, or someone regularly dealing with weaker UK swell, that extra low-end support could be extremely useful.
Which wing is best for downwind foiling?
There are several answers because "downwind" can mean very different things.
For learning downwind
We would still strongly consider the PNG V2 1300 or Spitfire 1180.
When learning, your biggest enemy is often losing flight. A foil with a low stall speed and predictable behaviour gives you more time to make mistakes.
For carving downwind
The Surge 1240 becomes extremely attractive.
If your aim is to carve from bump to bump, change direction, cut back across swell and make the run feel more like surfing than travelling, the additional roll response is valuable.
For maximum distance and speed
Look further towards Fireball and AXIS's more dedicated high-efficiency downwind options.
The Surge is about combining glide and turning, not winning a pure straight-line glide competition.
Which wing is best for dock starting and pumping?
If dock starting is your main discipline, the PNG V2 remains extremely difficult to ignore.
Its low-speed lift and pump rhythm make it a natural tool for getting up and staying up.
However, the Surge 1240 introduces an interesting alternative for a competent pump foiler.
If you can already dock start consistently and are now trying to connect turns, ride boat wakes, pump into waves or make pumping more playful, the Surge may give you more freedom once flying.
Beginners should probably still prioritise getting flying.
Experienced pump riders may prioritise what happens afterwards.
Which wing is best for heavier riders?
This depends heavily on discipline and skill.
A heavier rider does not automatically need the biggest possible wing, but greater rider mass does increase the amount of lift required at any given speed.
For heavier riders:
- Choose the PNG V2 1300 or 1400 if maximum low-speed support and pumping are the priority.
- Choose the Spitfire 1180 if ease and predictable progression are the priority.
- Choose the Surge 1240 if you already have reasonable foil control and want lift without sacrificing a lively ride.
Board shape matters enormously too. A long, narrow downwind-style board accelerates onto foil far more efficiently than a short, wide board, allowing the same rider to use a smaller front wing.
Which wing is best for light-wind wing foiling?
Again, it depends on what you want once you are flying.
If simply flying in the least wind possible is the goal, PNG V2 is extremely compelling.
If you are relatively new and want an easy, dependable foil, Spitfire makes sense.
If you want to get flying early but still carve hard and use swell once the board releases, Surge 1240 is likely to be the more exciting option.
That distinction is particularly relevant in the UK, where a marginal session can quickly turn into a powered session as a front passes or a sea breeze fills in.
A foil with a broader comfortable speed range can remain useful as conditions change.
Surge 1150 or Surge 1240?
For existing Surge riders, this may actually be the most relevant buying decision.
The 1150 is already a substantial front wing. It offers excellent lift and noticeably more glide than the mid-sized Surge options while retaining a strong surf feel.
The 1240 goes another step towards low-speed lift, pump efficiency and open-water range.
Choose the Surge 1150 if...
- You want the more compact and lively option.
- You already get onto foil relatively easily.
- You ride more powered conditions.
- You value tighter turns over absolute low-end lift.
- You are lighter or use an efficient board.
Choose the Surge 1240 if...
- You need more help getting flying.
- You are a heavier rider.
- You SUP foil or downwind in weaker conditions.
- You want longer pump connections.
- You are using a larger or less efficient board.
- You want to maximise your light-wind range.
For some riders the 1240 could replace the need for both a large pump wing and a large surf-oriented foil. For others, keeping a smaller Surge alongside a PNG V2 will still create the broader quiver.
Surge 1080, 1150 or 1240?
| Size | Choose it if... |
|---|---|
| Surge 1080 | You want a large Surge that still feels relatively compact, quick and playful. |
| Surge 1150 | You want an excellent compromise between lift, glide and surf-style handling. |
| Surge 1240 | You want maximum low-end support and pumping from the Surge range without moving to a dedicated pump/glide wing. |
Rider weight alone should not make this decision. We would also want to know your board, discipline, mast, fuselage, rear wing, ability and the conditions you normally ride.
What rear wing should you use with the Surge 1240?
AXIS specifically points towards its Surf Skinny rear wings as a natural pairing with Surge.
The logic makes sense.
A big front wing already creates plenty of lift. Pairing it with a lower-drag rear wing allows more of the front wing's glide and speed to come through while maintaining a surf-driven feel.
That does not mean everyone should immediately choose the smallest possible stabiliser.
A larger rear wing generally provides more pitch support and a calmer ride. A smaller or lower-drag rear makes the foil feel quicker, looser and more sensitive.
If you are moving to a Surge 1240 specifically because you want easier foiling, do not undo that advantage by making the rest of the setup unnecessarily technical.
What fuselage should you use?
The Surge works with compatible AXIS Black-series fuselages.
Fuselage length has a major effect on how the 1240 will feel.
A longer setup adds pitch stability and makes the foil easier to manage. A shorter fuselage loosens the foil and allows it to take advantage of the Surge's turning ability.
For riders still building confidence on a large front wing, a more settled fuselage can make sense.
For experienced SUP, parawing or surf-focused riders, a shorter AXIS Black Advance+ option can unlock much more of the Surge's rail-to-rail performance.
Read our AXIS Black Advance+ fuselage guide if you are deciding between Short, Ultrashort and the more specialist shorter options.
Does mast choice matter more with a 1240?
Yes.
A larger-span front wing creates greater leverage on the mast and fuselage.
A stiffer mast helps translate rider input into the foil more directly and keeps a large wing feeling precise rather than vague.
That does not mean an aluminium mast cannot work. AXIS's mast system gives riders several routes depending on budget and discipline.
But if you are building a premium high-performance SUP, downwind or foil-assist setup around the Surge 1240, mast stiffness becomes an increasingly important part of the overall package.
Is the AXIS Surge 1240 suitable for beginners?
It depends what type of beginner.
We would not automatically recommend the Surge 1240 as a first wing-foil front wing simply because it is large.
Large does not always equal beginner-friendly.
The Surge is designed to respond to rider input. That responsiveness is one of the reasons an experienced rider will like it, but a complete beginner may find a calmer foil easier to learn on.
For first wing-foil flights, the Spitfire 1100 or 1180 may still be the better direction.
For someone already comfortable wing foiling who is beginning SUP foil, parawing or downwind, the Surge 1240 could make much more sense.
Can the Surge 1240 really be a one-wing solution?
For the right rider, it could get surprisingly close.
That is perhaps the most interesting thing about the new size.
A rider who enjoys SUP foil, parawing, light-wind winging, Foil Drive and occasional pumping could previously justify owning several substantially different front wings.
The Surge 1240 overlaps more of those disciplines.
But there is always a compromise.
A dedicated PNG V2 remains more focused on pumping and very low-speed flight. A Fireball remains more focused on long-distance glide. A smaller Surge remains more exciting in proper surf.
The 1240's strength is not that it beats every specialist wing at its own game.
Its strength is that it covers an unusually broad area between them.
Our recommendations by rider type
| Rider | Our starting point | Why |
|---|---|---|
| First-time wing foiler | Spitfire 1100 / 1180 | More predictable and confidence building |
| Heavier improving wing foiler | Surge 1150 / 1240 | More lift without losing progression potential |
| Beginner downwind rider | PNG V2 1300 or Spitfire 1180 | Low stall speed and easier recovery |
| Carving downwind rider | Surge 1240 | Glide combined with much better rail-to-rail response |
| SUP foil rider in weak surf | Surge 1240 | Easy lift, pump range and surf feel |
| Dedicated dock-start rider | PNG V2 1300 | Exceptional low-speed pump performance |
| Experienced pump rider wanting more turns | Surge 1240 | More dynamic once flying |
| Light-wind winger wanting easiest flight | PNG V2 1300 | Very strong low-speed support |
| Light-wind winger wanting more performance | Surge 1240 | Better acceleration, carving and speed range |
| Parawing rider | Surge 1150 / 1240 | Glide plus surf-oriented turning once the parawing is packed |
| Maximum open-water efficiency | Fireball direction | More dedicated glide-first design |
UK conditions: why the Surge 1240 makes sense here
British foiling conditions are rarely perfect.
We deal with short-period wind swell, gusty wind, tide, confused chop, flatter sections and sessions where the conditions change significantly within an hour.
That makes usable range particularly important.
A foil that only works brilliantly once you reach a very specific speed or swell size can be frustrating.
The attraction of the Surge 1240 is its ability to operate at low enough speeds to make marginal conditions usable while still having the speed and turning ability to stay interesting when conditions improve.
That makes it potentially more useful for many UK riders than a foil designed purely around perfect open-ocean downwind conditions.
Try an AXIS setup before making the final decision
Front wing specifications tell you part of the story, but foils are particularly sensitive to rider weight, board choice, mast stiffness, fuselage length, rear wing and personal riding style.
Two riders of the same weight can legitimately choose completely different front wings.
At The SUP Co x Lymington, our Try It Now service gives suitable customers the opportunity to discuss and test selected foil, wing and foil-assist equipment rather than buying completely blind.
If you are choosing between the Surge 1240, PNG V2 1300 and Spitfire 1180, send us your:
- Rider weight
- Current board and volume
- Current foil setup
- Mast and fuselage
- Rear wing
- Experience level
- Usual location and conditions
- Main discipline
- What you want your current foil to do better
That information normally tells us far more than simply knowing which front wing is newest.
Finance and delivery
Finance options are available on qualifying orders, which can be useful when investing in a complete foil setup or upgrading several components together.
AXIS availability can vary by front wing size and specialist component. If you need equipment for a particular trip, event or demo session, contact the team so we can confirm the latest position rather than relying on an assumed delivery date.
Final verdict: is the AXIS Surge 1240 the big AXIS wing to buy?
For many improving and experienced riders, it could be.
The Surge 1240 fills a gap that has existed for a long time: a genuinely large front wing with enough low-speed lift and pump efficiency for SUP, downwind and marginal conditions, without abandoning the ability to roll, carve and surf.
It does not make the PNG V2 1300 redundant. If your world revolves around dock starts, flat-water pumping and keeping the foil flying at incredibly low speeds, PNG V2 remains a specialist tool that makes enormous sense.
It does not make the Spitfire 1180 redundant either. If you want confidence, predictable handling and an easier progression route, Spitfire is still a very sensible choice.
But if you have been waiting for a large AXIS wing that feels less like a big wing once it is flying, the Surge 1240 is arguably the most interesting option of the three.
Choose the Surge 1240 if you want big-wing lift without giving up the reason you started foiling in the first place: turning, surfing and having fun once you are up.
Explore the AXIS Surge front wing range, compare the AXIS PNG V2 front wings and AXIS Spitfire front wings, or browse the complete AXIS Foils range at The SUP Company.
Frequently Asked Questions
What is the AXIS Surge 1240?
The AXIS Surge 1240 is the largest front wing in the Surge family. It has a 1,240 mm span, 142 mm maximum chord and 11.48 aspect ratio. It is designed to combine strong low-speed lift, pumping and glide with the faster, more surf-oriented turning character associated with the Surge range.
What is the main difference between the Surge 1240 and PNG V2 1300?
The PNG V2 1300 puts greater emphasis on low-speed lift, easy pumping and staying on foil. The Surge 1240 is faster and more turn-focused. Choose PNG V2 if pumping and marginal-condition efficiency are your main priorities. Choose Surge 1240 if you also want to carve, accelerate and surf the foil more aggressively.
Should I choose the Surge 1240 or Spitfire 1180?
Choose the Spitfire 1180 if you want predictable lift, stability and an easier progression path. Choose the Surge 1240 if you are already confident on foil and want better pumping, glide and rail-to-rail response from a large front wing.
Is the Surge 1240 good for SUP foiling?
Yes. SUP foiling is one of the most interesting uses for the Surge 1240 because its size provides useful low-speed support for paddle-powered take-offs while its design remains focused on carving, pumping and surfing once flying.
Is the Surge 1240 good for downwind foiling?
Yes, particularly if you want a more carving-oriented downwind setup. Riders prioritising maximum straight-line glide may prefer a more dedicated AXIS downwind foil, while beginners may appreciate the additional forgiveness of PNG V2 or Spitfire.
Is the AXIS Surge 1240 good for heavier riders?
It can be an excellent option for heavier riders because it provides considerably more low-speed support than the smaller Surge sizes. Board efficiency, discipline, skill and conditions still matter, so rider weight should not be used as the only sizing factor.
Is the Surge 1240 suitable for beginner wing foilers?
It would not normally be our first recommendation for a complete beginner. A larger Spitfire can provide a calmer and more predictable first setup. The Surge 1240 is particularly interesting for improving and experienced riders who can make use of its additional speed and manoeuvrability.
Should I buy the Surge 1150 or Surge 1240?
Choose the Surge 1150 if you want the more compact, lively option and already generate enough take-off speed. Choose the Surge 1240 if you need more low-speed lift, longer pumping range or greater support for SUP foil, downwind, heavier riders and lighter conditions.
Is PNG V2 still better for dock starting?
For a rider primarily focused on learning dock starts or flat-water pumping, PNG V2 remains an excellent choice because low-speed lift and pump efficiency are central to its design. More experienced pump riders may prefer the Surge 1240 if they want greater speed and more dynamic turning once flying.
Does the Surge 1240 fit AXIS Black fuselages?
Yes, the Surge 1240 uses the compatible AXIS Black-series fuselage platform. It is not an AXIS Red/S-Series front wing. If you have older AXIS components or are unsure about compatibility, contact us before ordering.
Can I try AXIS foil equipment before buying?
Selected foil, wing and foil-assist equipment can be available through our Try It Now service at The SUP Co x Lymington. Demo suitability and equipment availability vary, so contact the team with your current setup, rider weight and what you are looking to improve.
Can I use finance when buying an AXIS foil setup?
Finance options are available on qualifying orders, which can be useful when investing in a complete setup or making a larger foil upgrade. Eligibility and terms apply.
