Duotone Mast SLS 2.0 QM – Quickmount Carbon Foil Mast

The Duotone Mast SLS 2.0 QM combines the noticeably more direct and efficient feel of a carbon foil mast with one of the most practical mounting systems in the Duotone range. It is aimed at riders who want a genuine performance upgrade from aluminium, but also want to spend less time assembling their foil before and after every session.

The key difference is Duotone's Quickmount system. Rather than removing the complete mast plate from your board every time you pack away, the aluminium Quickmount base plate can remain fixed in your preferred track position. The carbon mast then connects to or disconnects from that plate using a single Quickmount fixing. That makes it particularly useful if you foil regularly, transport your board inside a vehicle, swap equipment frequently or simply want to preserve your carefully chosen mast position between sessions.

For 2027, this convenience is combined with a completely updated tapered SLS 2.0 mast profile. Inspired by Duotone's D/LAB development, the mast uses a shorter, thinner and more hydrodynamically efficient profile to reduce wetted surface and drag while retaining the stiffness needed for precise foil control. The result is smoother acceleration, better glide and a cleaner, more connected sensation through the foil.

Where the Mast SLS 2.0 QM sits in the Duotone range

The SLS 2.0 QM is the performance-and-convenience option in Duotone's mast range. Aluminium remains the value and durability-focused choice, while D/LAB targets riders chasing the absolute lowest drag and highest-end carbon performance. The SLS 2.0 QM sits between the two, giving committed riders a substantial carbon upgrade without making the system unnecessarily specialist.

There is also an important choice between this Quickmount model and the Duotone Mast SLS 2.0. Both use the new tapered, low-drag SLS 2.0 mast concept. The standard SLS 2.0 integrates the mast and plate into a one-piece carbon construction for maximum rigidity and the cleanest possible connection, whereas the SLS 2.0 QM uses an aluminium Quickmount plate so that the mast can be removed from the board in seconds.

Choose the SLS 2.0 QM if quick setup, easy transport and repeatable foil positioning matter to you. Choose the standard SLS 2.0 if outright rigidity, minimum connection drag or the longer 92cm mast option is the priority.

Why choose the Duotone Mast SLS 2.0 QM?

• Tool-free Quickmount convenience: remove or install the mast in seconds without repeatedly undoing your four board-track bolts.
• Keep your foil position: leave the Quickmount base plate in the same position in the board tracks, preserving your preferred trim between sessions.
• Carbon SLS performance: a lighter, stiffer and more responsive riding experience than a conventional aluminium mast.
• New tapered mast design: chord and thickness are carefully tapered to reduce wetted surface while retaining structural stiffness.
• D/LAB-inspired low-drag profile: the refined hydrodynamic section helps the foil accelerate cleanly and carry speed more efficiently.
• Smoother glide: lower mast drag is particularly noticeable when pumping, freeflying, linking bumps or trying to maintain flight through lower-energy sections.
• Direct foil feedback: the carbon structure provides a more precise connection between rider input and the foil below the water.
• Backward-compatible Quickmount system: designed to work with previous Duotone Quickmount base plates.
• 3BS+ connection: the updated mast connection supports Duotone's current 3BS ecosystem and newer 4-screw 3BS+ configurations.
• Two useful mast lengths: 76cm for compact, low-drag and specialist crossover use, and 84cm as the natural all-round Wing Foiling choice.

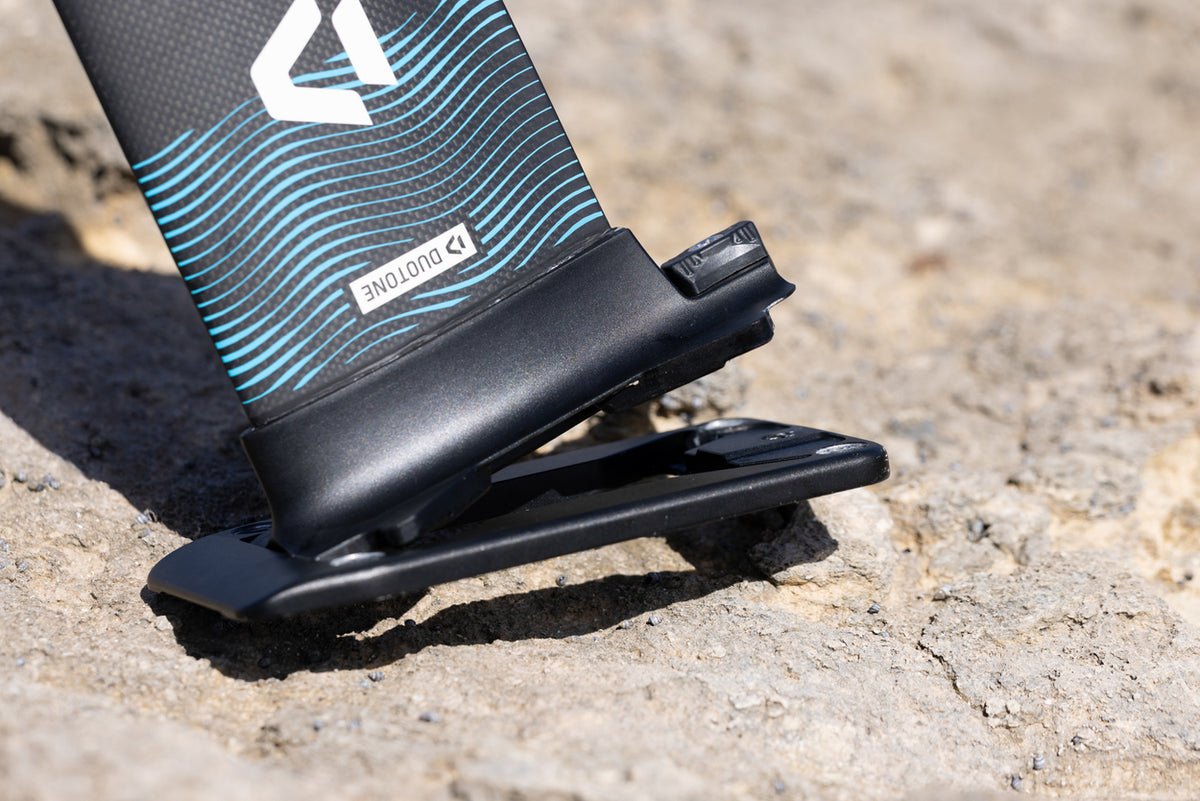

What does Quickmount actually do?

With a normal plate-mounted foil mast, packing the board flat generally means removing the four bolts that hold the mast plate into the board tracks. Once you put the foil back together, you then need to return the mast to the correct track position.

Quickmount separates those jobs. The aluminium base plate stays attached to your board, while the carbon mast can be detached from the plate using the Quickmount connection. This is a deceptively useful feature if you foil several times a week: your preferred track position remains unchanged and there is considerably less assembly at the beach.

It is also worth clarifying that Quickmount relates to the mast-to-board connection. Attaching your fuselage, front wing and tail still requires the appropriate Duotone hardware and correct tools.

New SLS 2.0 tapered mast profile

The biggest performance development is not simply that the mast is carbon. Duotone has refined the shape itself. The SLS 2.0 uses a tapered chord and thickness distribution, reducing the amount of mast moving through the water where material is not required while retaining additional structure closer to the board where loads are greatest.

In practical terms, less wetted surface means less hydrodynamic resistance. That can be felt as easier acceleration, improved glide between pumps and less of the slightly "sticky" sensation produced by larger mast sections. When the foil is moving quickly, the more refined profile also helps the setup feel quieter and more efficient beneath your feet.

The SLS carbon construction keeps the mast sufficiently stiff that those efficiency gains are not achieved at the expense of control. Steering inputs remain crisp, pumping energy is transferred effectively and the foil feels connected rather than delayed beneath the board.

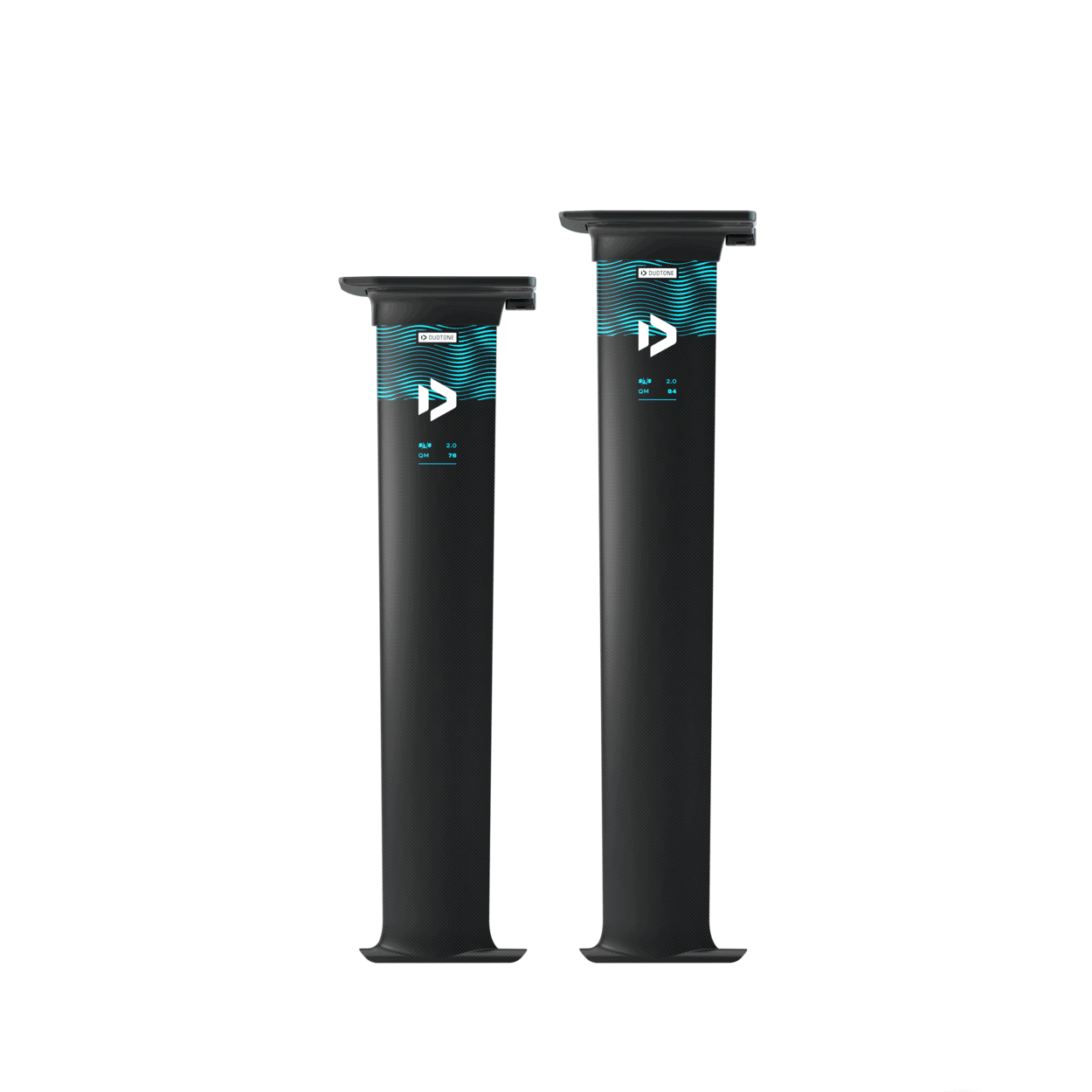

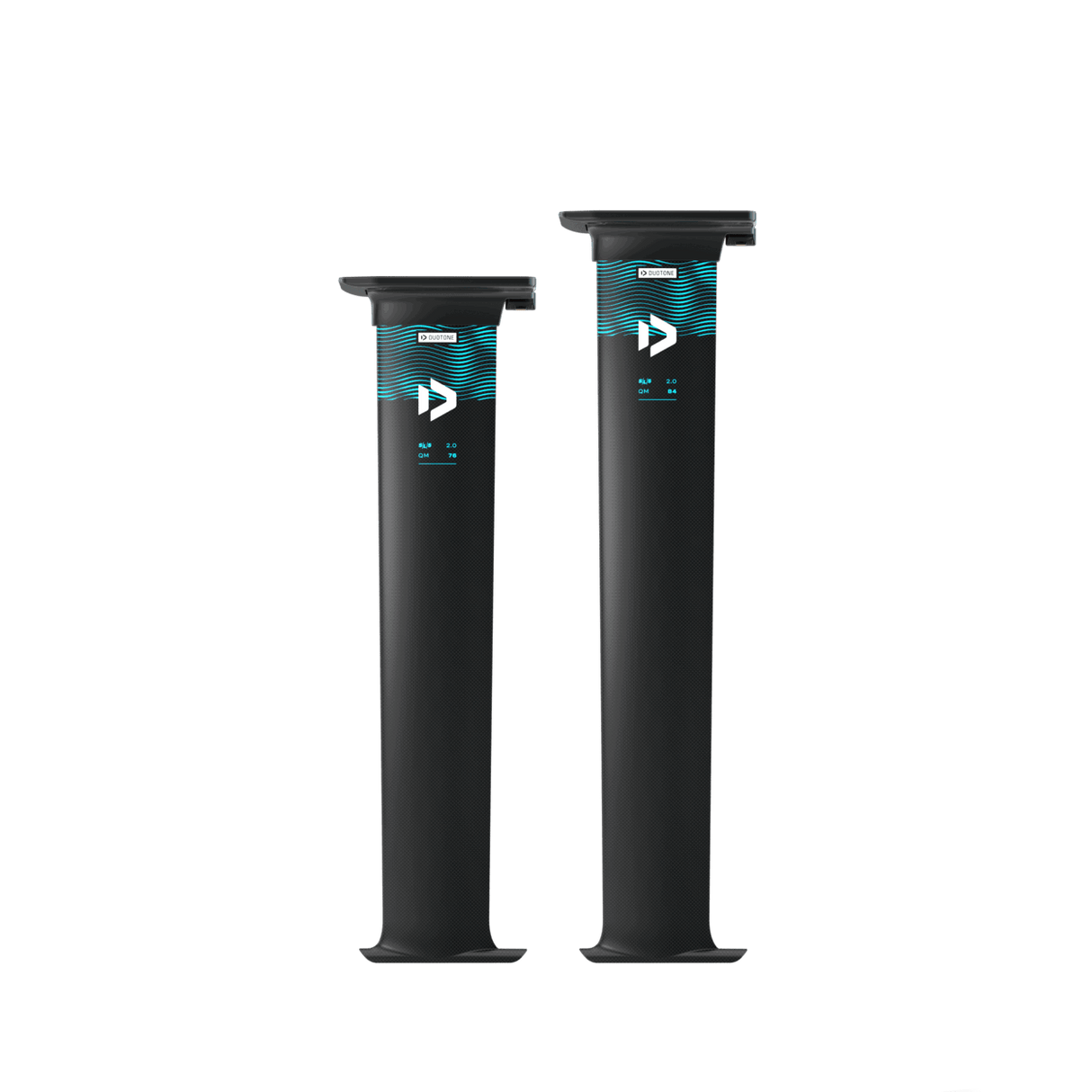

Which Duotone Mast SLS 2.0 QM size should I choose?

76cm

The 76cm is the more compact and lower-drag option. Duotone positions it for entry Wing Foiling, Pump Foiling, Prone Foiling, Parawing and Downwind use. The shorter mast gives a direct feel, makes getting started easier and reduces the amount of mast travelling through the water when pumping onto foil.

It is particularly attractive to prone and pump foilers, riders using smaller boards, and anyone who values efficiency over maximum clearance. The compromise is less height above the water, so riders regularly dealing with larger chop, steep swell or heavily banked turns may prefer the 84cm.

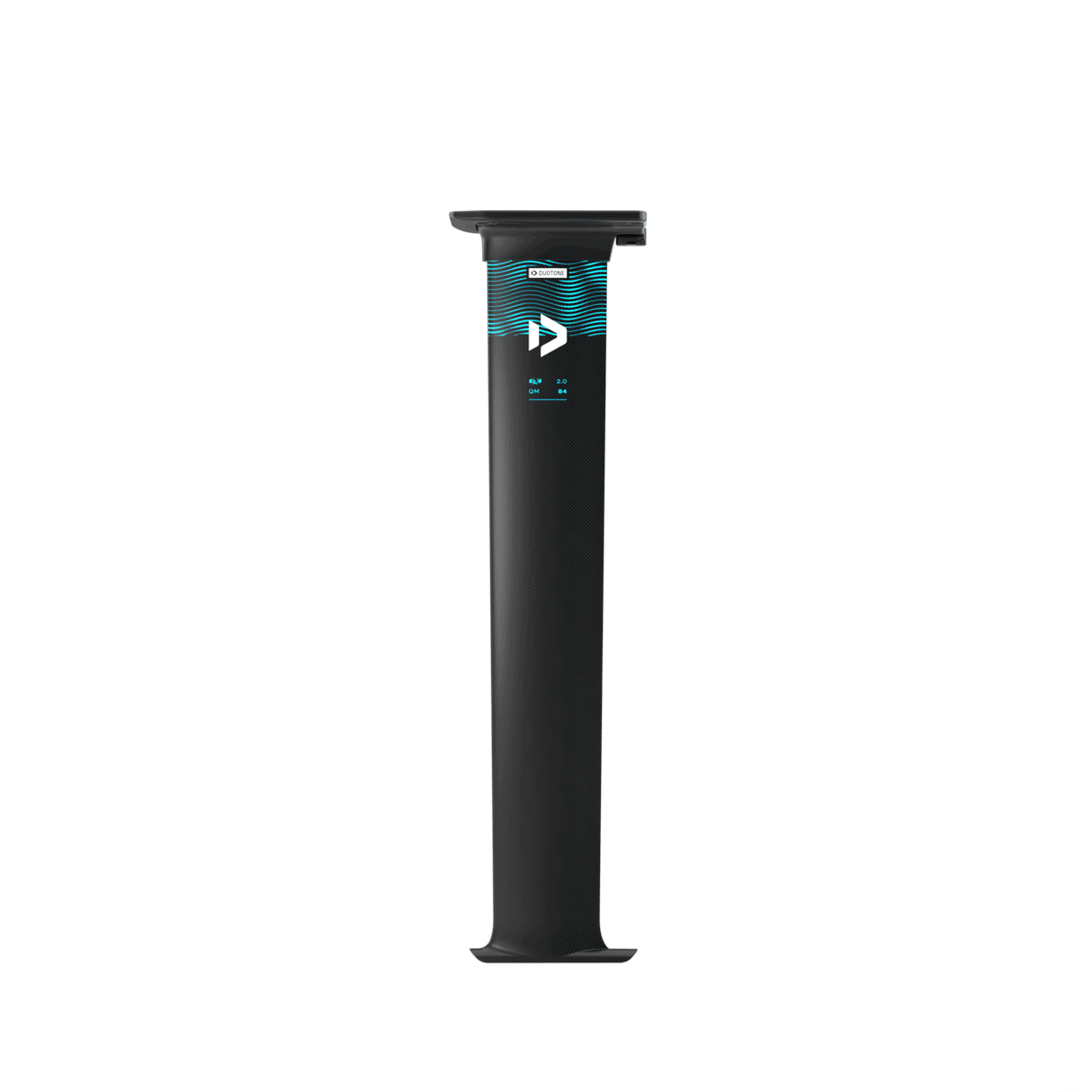

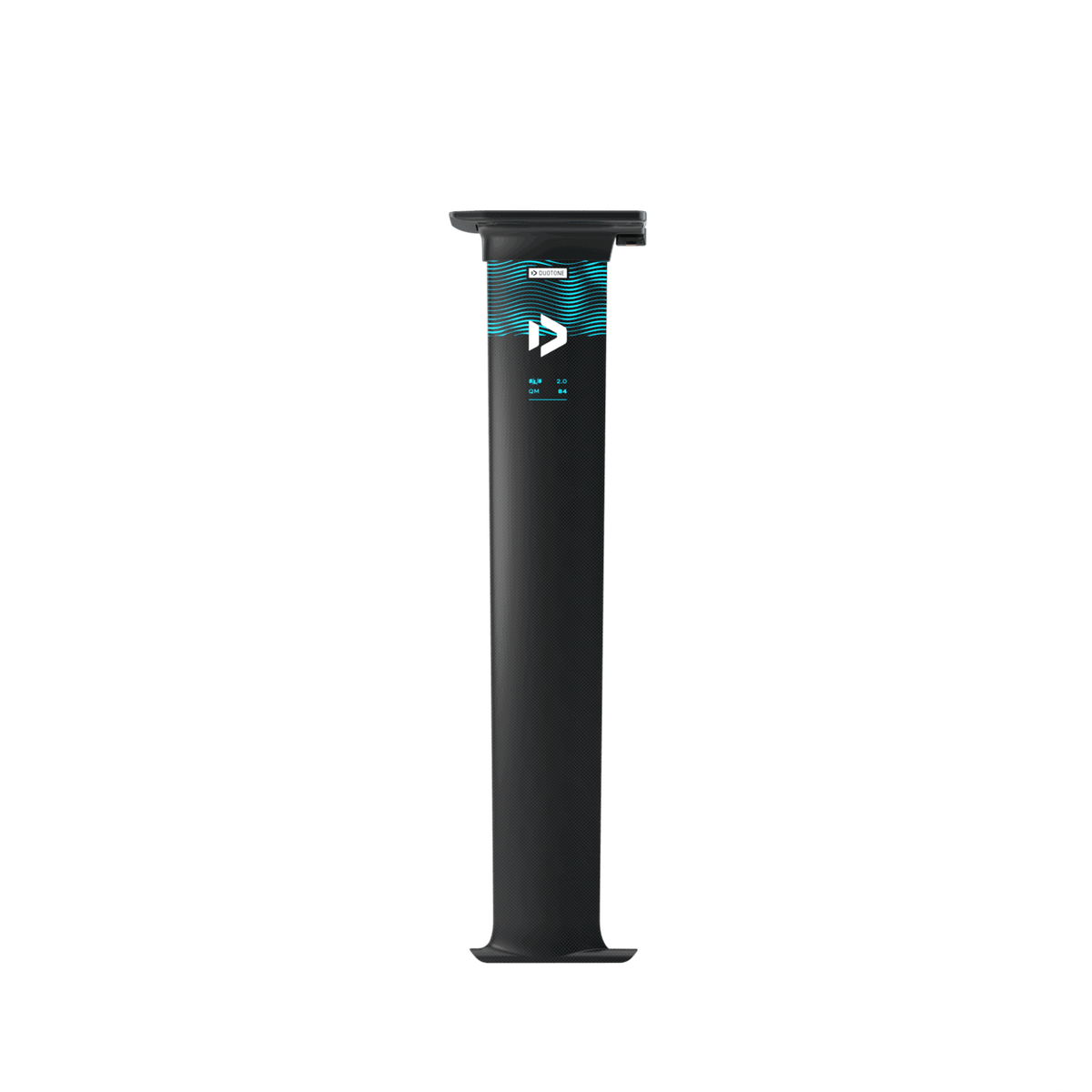

84cm

For most Wing Foilers wanting one mast, 84cm is the natural all-round choice. It provides more clearance in chop and swell without becoming unnecessarily long, while retaining the direct SLS feel and low-drag characteristics of the new profile.

It is the size we would normally start with for freeride Wing Foiling, wave riding, freefly sessions and riders wanting a versatile mast that can cover several different foil disciplines.

Specifications

Building a 2027 Duotone foil setup

The SLS 2.0 QM is particularly useful because it gives you a performance mast around which you can build a number of very different Duotone foil combinations.

For efficient freeride, pumping, freefly, Parawing and downwind-biased riding, the Duotone Glide 3.0 SLS is a logical partner. Its high-aspect design prioritises glide and pump efficiency, making the reduced mast drag particularly worthwhile.

If you want a foil with more emphasis on carving, prone, wave riding, freefly or Foil Assist, take a look at the Duotone Crest SLS. Its more manoeuvrable character makes a strong match for riders who want an agile rather than purely glide-focused setup.

Duotone's modular 3BS ecosystem also makes it possible to mix SLS and Original front wings with higher-performance D/LAB tails. The Duotone Frontpiece AL 3BS is the component to consider if you are building one of these hybrid combinations.

Who is the Mast SLS 2.0 QM best for?

We see the Mast SLS 2.0 QM making the most sense for progressing through advanced riders who already understand the value of mast stiffness and reduced drag, but do not want a performance setup to become awkward to live with.

It is particularly well suited to riders transporting their board in a car, anyone regularly setting up and packing down at different locations, riders who have spent time finding the perfect foil-track position, and anyone moving from an aluminium Quickmount mast who wants to retain the same practical system while upgrading to carbon.

Who might be better with another mast?

If price and outright durability are more important than weight and hydrodynamic efficiency, an aluminium Duotone mast remains a sensible choice. If you want Duotone's highest-end carbon construction and are willing to prioritise performance above Quickmount convenience, a D/LAB mast sits above SLS in the range.

Likewise, riders needing a longer mast should look at the standard Mast SLS 2.0, which adds a 92cm option alongside its integrated carbon plate construction.

Compatibility

• Compatible with existing Duotone Quickmount base plates.
• Uses Duotone's current 3BS / 3BS+ foil connection architecture.
• 3BS+ supports current Duotone foil developments using the additional fourth screw.
• Suitable across Wing, Pump, Prone, Parawing and Downwind configurations when paired with appropriate Duotone foil components.
• This is not a universal mast connection. If you are upgrading an older Duotone or Fanatic foil, we recommend checking the exact mast and fuselage generation before ordering.

Frequently asked questions

The SUP Company view

The Mast SLS 2.0 QM is one of the most sensible premium mast options in the Duotone range for riders who actually have to transport and assemble their equipment every session. Carbon masts are often discussed entirely in terms of weight and stiffness, but the real attraction here is the combination of better hydrodynamic efficiency, a direct SLS riding feel and a mounting system that genuinely makes the equipment easier to own.

For most dedicated Wing Foilers we would choose the 84cm. If your riding is centred around pump, prone, downwind, Parawing or lower-drag short-mast applications, the 76cm deserves serious consideration. If you are unsure which length or foil combination is right for your weight, board and riding style, speak to The SUP Company before ordering and we can help build the complete Duotone setup around you.
