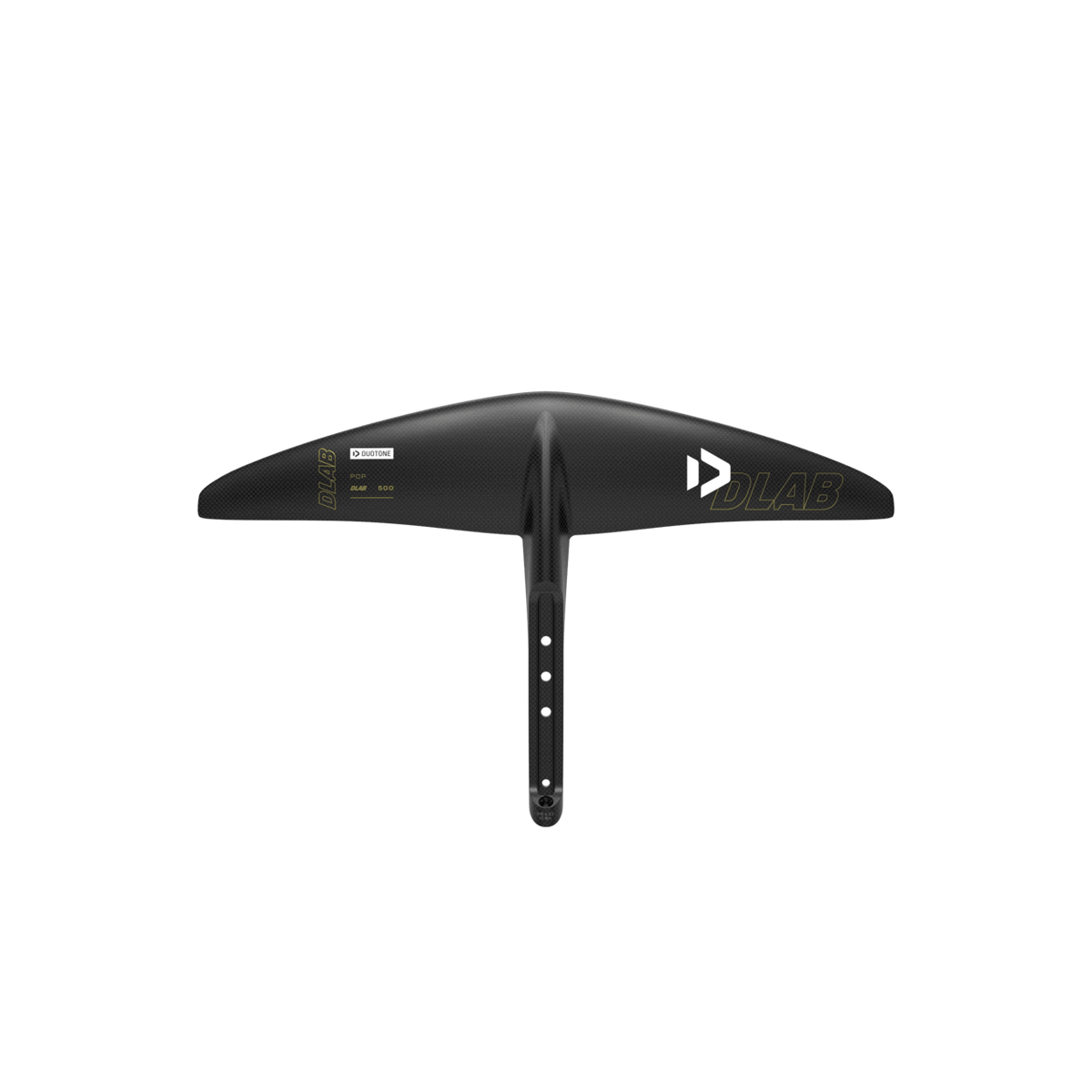

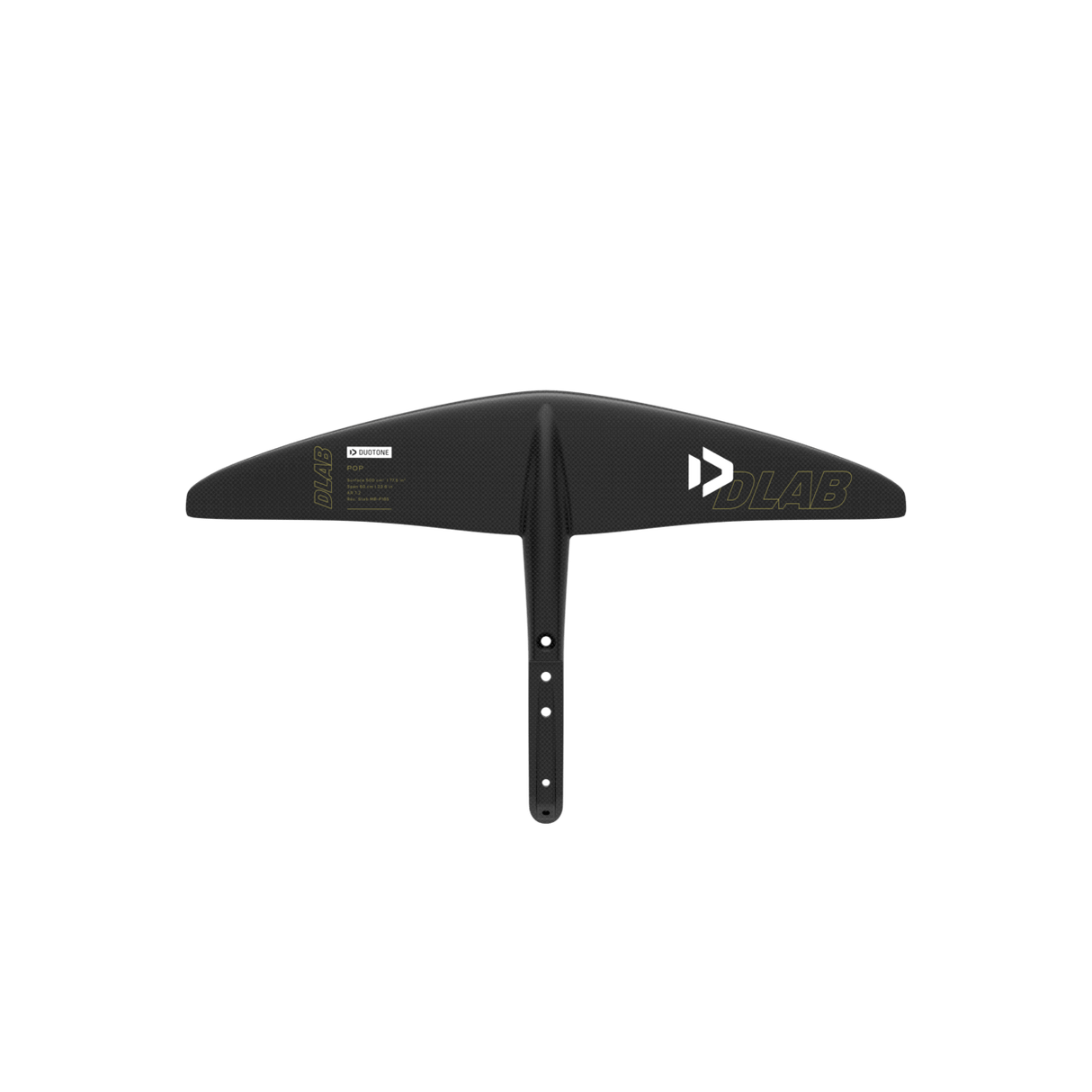

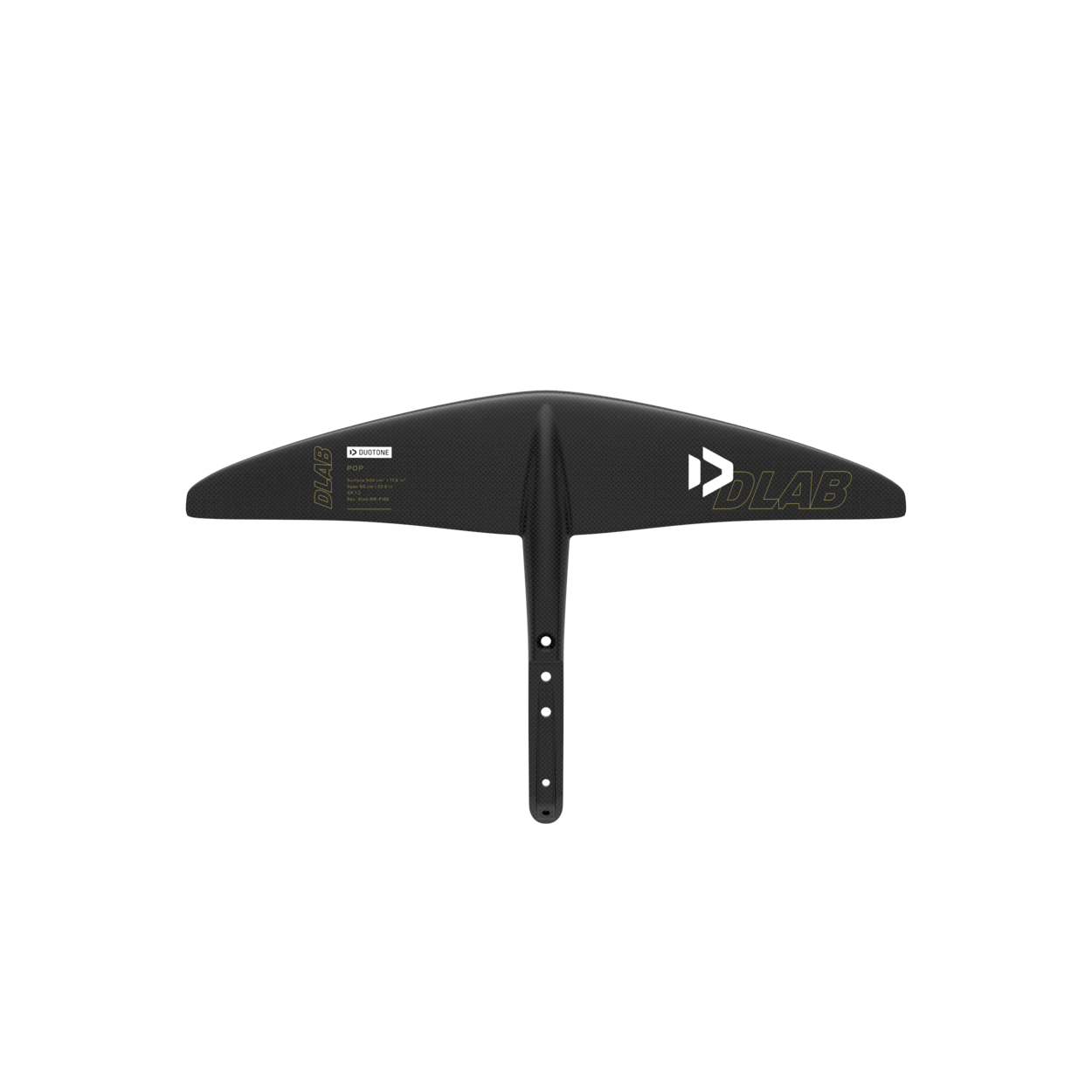

Duotone Front Wing Pop D/LAB

Duotone Front Wing Pop D/LAB

The Duotone Pop D/LAB is Duotone's dedicated high-performance freestyle front wing, developed for riders who want explosive pop, powerful re-pop, high-speed control and a predictable, locked-in foil when pushing advanced aerial manoeuvres.

Where a surf-orientated foil is designed to feel loose and flow freely through turns, the Pop takes a deliberately different approach. Its low-to-medium aspect outline, fast low-drag profile and consistent front-foot pressure create a foil that can be driven hard, loaded before take-off and released with authority. That makes the Pop D/LAB a specialist choice for progressive wingfoil freestyle, while its speed and controlled character also make it highly relevant for fast Kite Foiling and powered flat-water winging.

The Pop is designed around the Duotone Monobloc Tail F D/LAB. The F165 rear tail is recommended across all three Pop front-wing sizes and completes the dedicated freestyle platform with increased front-foot pressure, responsive pitch control and a compact rear end.

Why choose the Duotone Pop D/LAB?

• Dedicated freestyle design: developed specifically around explosive take-offs, aerial control and rapid re-pop.
• Powerful pop: the foil can be loaded aggressively before take-off, giving advanced riders the platform required for higher and more technical moves.
• Class-leading re-pop character: designed to regain lift quickly during progressive freestyle combinations.
• Consistent front-foot pressure: maintains a predictable, locked-in feeling as speed increases.
• Fast, low-drag profile: allows the rider to generate substantial speed before take-off, turning speed into height and amplitude.
• Low-to-medium aspect ratio: prioritises control and powerful lift in powered conditions rather than chasing maximum glide.
• Stable through the speed range: designed to retain predictable pitch behaviour when accelerating hard into tricks.
• Reinforced D/LAB construction: increased fuselage cross-section and optimised Carbon layup provide the stiffness and strength required for demanding freestyle riding.
• 3BS+ connection: incorporates the additional fourth-screw system for maximum pitch stability on compatible setups.
• Competition-developed: the Pop was developed and proven at the highest level of freestyle competition.

A foil designed to be loaded

The defining characteristic of the Pop D/LAB is its locked-in feel. For a dedicated freestyle rider, that is a major advantage.

When accelerating towards a jump, you need to know where the foil is and how much pressure you can put through it. The Pop maintains consistent front-foot pressure across its speed range, giving you a firm platform to push against as you build speed and prepare for take-off.

The fast profile is equally important. More speed before leaving the water translates directly into greater potential height and amplitude. Rather than becoming nervous as it accelerates, the Pop has been designed to retain control under power, allowing experienced riders to commit to their take-off.

Explosive pop and re-pop

Pop is not just the product name; it describes the fundamental purpose of the foil.

The combination of its outline, profile and stable pressure distribution is designed to store and release energy effectively during a freestyle take-off. That gives the rider the explosive lift required for modern wingfoil tricks.

Re-pop is equally important. Contemporary freestyle increasingly requires riders to recover from one movement and immediately generate lift for the next. The Pop has therefore been tuned not only for the initial jump but also for powerful and controlled re-pop.

Fast profile, low drag

The Pop D/LAB uses a fast, low-drag foil profile designed to generate speed efficiently before take-off. Its refined outline carries more chord towards the centre of the wing, helping create the combination of lift, speed and control required for freestyle riding.

Despite its emphasis on speed, the Pop retains good stall resistance. This gives the foil a broader usable range than an outright race-orientated design while preserving the acceleration needed for powered tricks.

More locked-in than a surf foil

The Pop should not be viewed as an all-round foil with a freestyle label added to it. It is deliberately more specialised.

Compared with Duotone's more surf-orientated foil concepts, the Pop feels more locked-in and more stable. It prioritises pop and aerial control over maximum carving freedom and long-distance glide.

That distinction is important when choosing between foil families. Riders principally chasing waves, highly fluid carving or bump-to-bump glide will normally be better served elsewhere in the Duotone range. Riders whose priority is jumping higher and progressing technically through freestyle manoeuvres are exactly who the Pop is intended for.

Reinforced D/LAB construction

Freestyle foils experience very different loads to a foil primarily used for cruising or downwind riding. Hard take-offs and particularly hard landings can put significant loads through the connection between front wing, fuselage, mast and board.

Duotone has therefore given the Pop D/LAB an increased fuselage cross-section together with an optimised Carbon layup. The intention is maximum strength and stiffness while retaining the low weight and low-drag characteristics expected from a D/LAB product.

For the rider, greater stiffness means inputs are transferred rapidly through the foil. This helps preserve the direct connection and precise control that the Pop's freestyle character depends upon.

3BS+ four-screw connection

The Pop uses Duotone's latest 3BS+ connection with an additional fourth screw. This further supports the connection under load and increases pitch stability across the speed range.

Pitch stability is especially important on a freestyle foil because the rider is accelerating rapidly, loading the foil hard and then asking it to remain predictable through take-off and landing. The additional connection supports the rigid, controlled character Duotone has designed into the complete Pop system.

If you are moving between generations of Duotone foil equipment, our Duotone Foil Compatibility Guide – 3BS, Tails & Masts is worth reading before ordering.

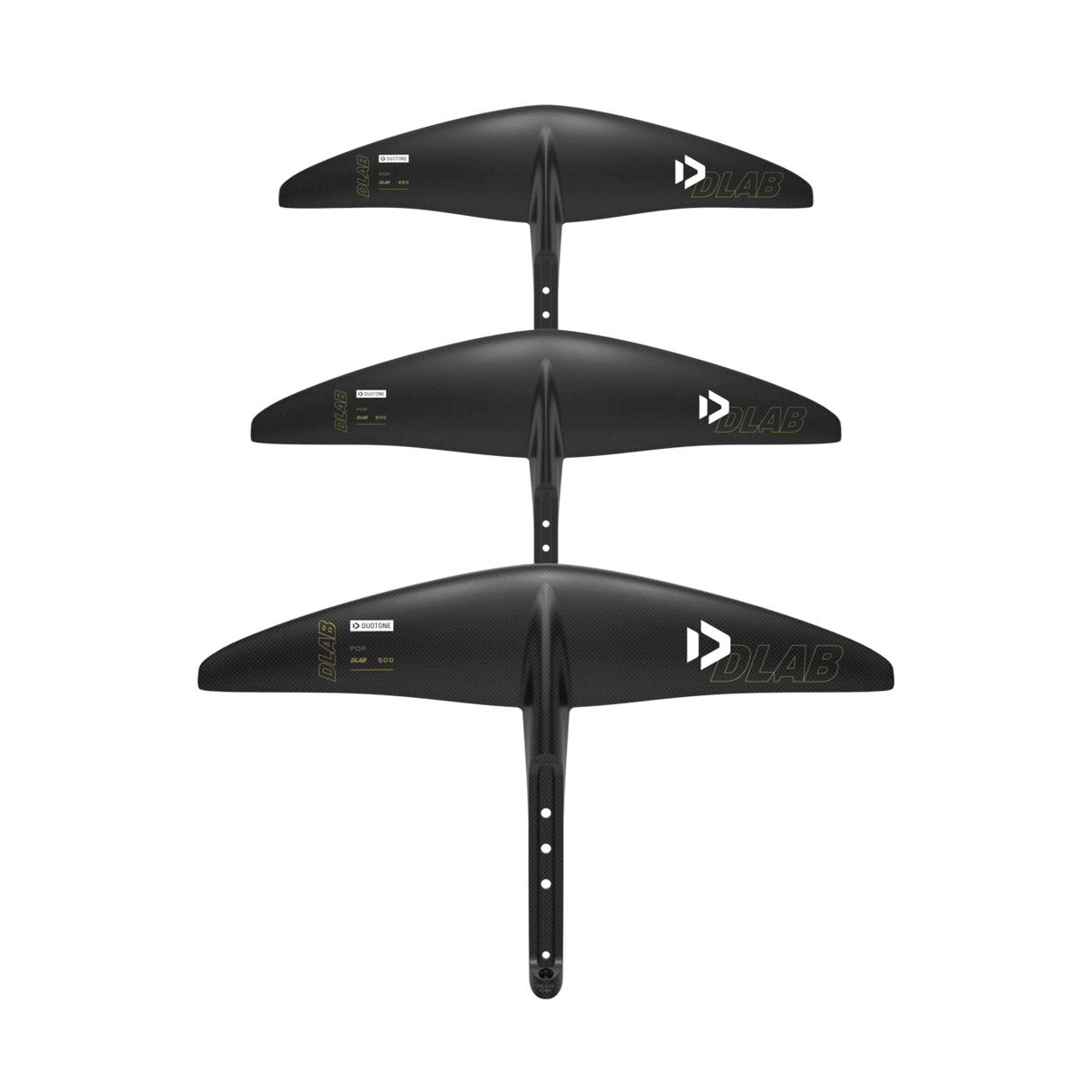

Pop D/LAB sizes

Which Pop D/LAB size?

Pop D/LAB 500

The 500 is the smallest front wing in the range, providing the minimum surface area and most compact platform within the Pop family. It retains the same freestyle-focused design philosophy and pairs with the same F165 Monobloc tail as the larger sizes.

Pop D/LAB 650

The 650 has been a key development size for Duotone's top freestyle riders and was used successfully at GWA Freestyle World Cup level during the Pop's development. For highly capable riders looking for the central performance size within the Pop programme, the 650 is particularly significant.

Pop D/LAB 800

The 800 provides more lift than the smaller Pop sizes and is specifically positioned for heavier riders or riders looking to access the Pop's freestyle characteristics with additional lift in lighter conditions.

All three sizes are matched to the same Monobloc Tail F165 D/LAB, maintaining the core rear-end character as you change front-wing size.

Pop D/LAB + Monobloc F165

The recommended rear section for every Pop D/LAB size is the Duotone Monobloc Tail F D/LAB F165.

The F165 uses a compact 37 cm tail together with a 165 cm² stabiliser. Its angle and tip twist have been specifically tuned to create additional power and front-foot pressure, complementing the Pop front wing's own locked-in character.

The combination creates a foil system in which the front and rear wings are both working towards the same goal: speed into the trick, powerful release, predictable pitch control and confident landings.

Complete Pop D/LAB Wing Set

If you are building the system rather than upgrading an existing compatible Duotone foil, also see the Duotone Wing Set Pop D/LAB.

The Wing Set is the more straightforward option for riders who want the Pop front wing and its matched F165 rear section together rather than purchasing the individual wing components separately.

Mast options

A freestyle foil benefits considerably from a stiff mast because flex between the board and foil reduces the precision of rider inputs. The Duotone Mast SLS 2.0 is a strong carbon option for riders building a high-performance Pop setup.

The SLS 2.0 uses a tapered low-drag profile, one-piece plate and mast construction and a 3BS+ connection, giving the Pop a stiff and direct connection to the board.

Riders who prioritise faster assembly and easier transport can instead consider the Duotone Mast SLS 2.0 Quickmount, which combines the SLS carbon mast concept with Duotone's tool-free Quickmount base system.

Who should buy the Pop D/LAB?

The Pop D/LAB is primarily aimed at intermediate-to-expert riders progressing into serious freestyle, and advanced or competition-level riders already jumping regularly.

It makes particular sense if your priorities include:

• Generating more speed before take-off
• Increasing jump height and amplitude
• Getting more explosive release from the foil
• Improving re-pop between technical tricks
• Maintaining predictable front-foot pressure at speed
• Having a foil that remains composed during powered approaches
• Using a stiff, direct setup for aggressive freestyle riding

Who may be better with another Duotone foil?

The Pop is deliberately specialised, so it is not necessarily the best choice simply because you want a high-performance D/LAB foil.

If pump and glide, downwind or parawing are the priority, the Duotone Glide 3.0 D/LAB is a much more logical direction. Its high-aspect platform is built around efficiency and sustained glide rather than explosive freestyle performance.

If you want a more manoeuvrable foil for prone, freefly, wake and Foil Assist riding, the Crest family offers a different balance of turning response, pumping and accessible low-end performance. The Duotone Crest SLS provides that design concept in the more accessible SLS construction.

For a complete overview of where Pop, Crest and Glide sit within the new range, read our Duotone Foils 2027 Explained – Complete Range Guide.

Technical specification

• Product: Duotone Front Wing Pop D/LAB
• Model year: 2027
• Duotone item number: 42270-3857
• Discipline: Freestyle / Kite Foiling
• Construction: D/LAB Carbon
• Design: Low-to-medium aspect freestyle front wing
• Sizes: 500 cm² / 650 cm² / 800 cm²
• 500: AR 7.2 / 60 cm span
• 650: AR 6.9 / 66.9 cm span
• 800: AR 6.8 / 74 cm span
• Recommended rear tail: Monobloc Tail F165 D/LAB
• Connection: 3BS+ with additional fourth screw
• Profile: Fast / low drag
• Primary focus: Pop, re-pop, speed, front-foot pressure and freestyle control

What is included?

This listing is for the Duotone Front Wing Pop D/LAB in your selected size. A complete foil requires the appropriate rear tail, mast and compatible connection components.

For the intended freestyle setup, pair the front wing with the Duotone Monobloc Tail F D/LAB F165. Alternatively, see the Duotone Wing Set Pop D/LAB if you require the matched wing components together.

Further Duotone 2027 foil advice

The 2027 Duotone foil range is considerably more discipline-specific than simply choosing a front-wing area. Pop, Crest and Glide have distinctly different profiles, outlines and riding characteristics.

Read our Duotone Foils 2027 Launch – Glide 3.0, Crest & Pop for an overview of the key new models, or use our Duotone Foil Compatibility Guide if you are adding Pop components to an existing Duotone setup.

Duotone Pop D/LAB FAQs
