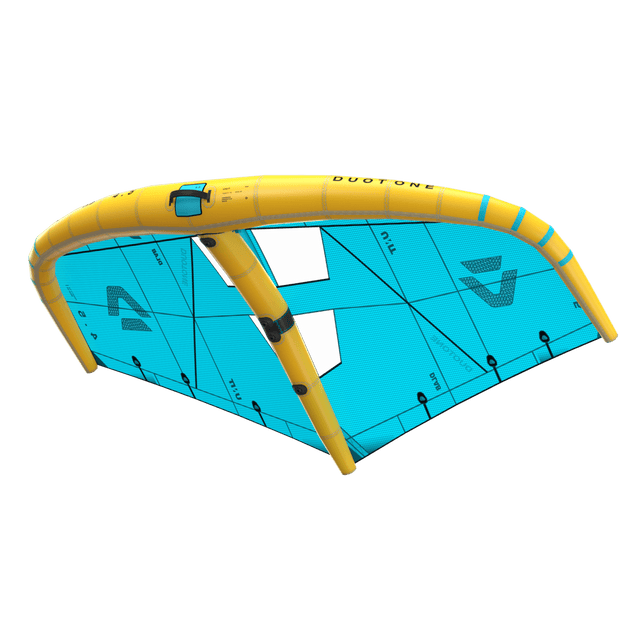

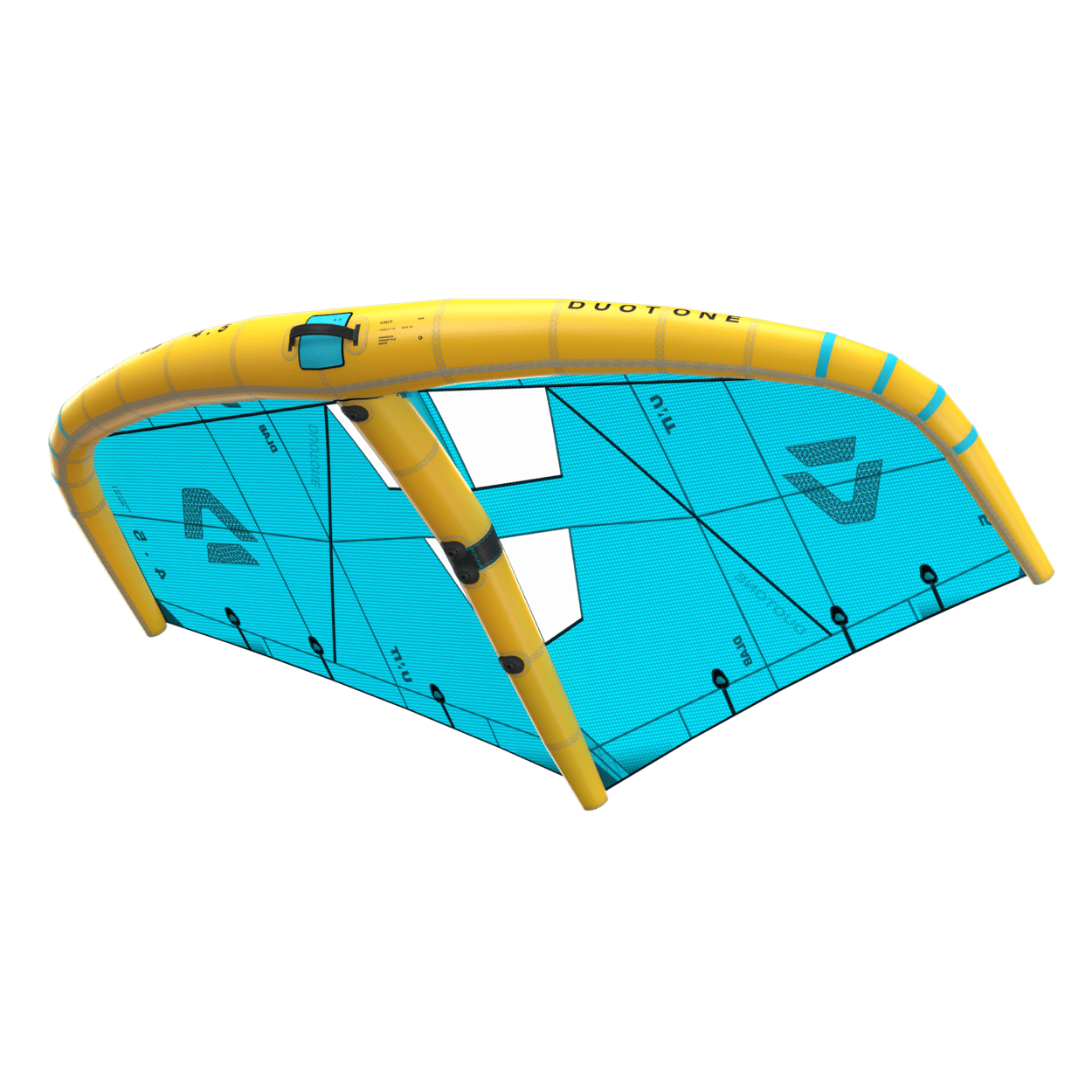

Duotone Unit D/LAB - 2027

Duotone Unit D/LAB Wing 2027

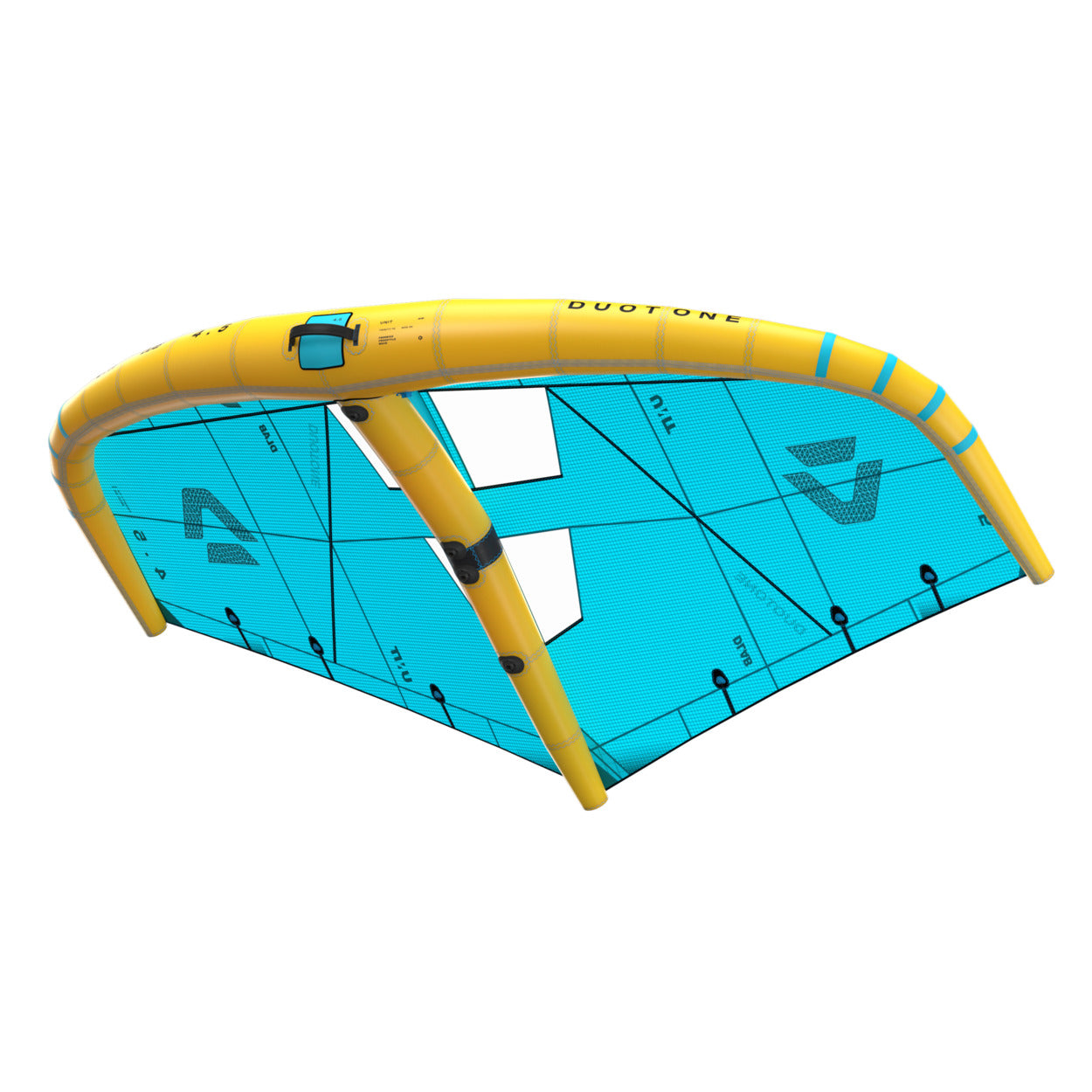

The 2027 Duotone Unit D/LAB is the highest-performance version of Duotone's benchmark Unit wing, built for experienced and ambitious riders who want minimum weight, maximum frame stiffness, low aerodynamic drag and an exceptionally direct connection to the wing.

For 2027, Duotone has made meaningful changes rather than simply updating the graphics. A shorter centre strut gives the wing a more compact feel, the reduced leading-edge diameter cuts drag, the profile distribution has been refined for more efficient power and better flagging, and canopy tension and tip twist have been retuned for cleaner aerodynamics and improved draft control. The window layout is also new for better visibility.

Those design changes sit around the defining D/LAB construction: a full 82g/m² Aluula Gold leading edge and strut paired with Duotone's MOD3s performance canopy. On the water, that translates into quick acceleration, very low swing weight, immediate response when pumping or sheeting, precise control when powered and an impressively neutral feel when the wing is flagged on a wave or swell.

This is not necessarily the Unit every rider needs. The 2027 Duotone Unit SLS provides an excellent balance of stiffness, low-end drive and price, while the 2027 Duotone Unit offers a more forgiving frame feel and broader accessibility. The Unit D/LAB is for riders who specifically want the lightest, fastest and most direct option in the family.

Why choose the 2027 Unit D/LAB?

• Full 82g/m² Aluula Gold frame: exceptionally low weight and high structural stiffness for immediate response and direct power transfer.
• Reduced leading-edge diameter: lowers aerodynamic resistance and helps the wing accelerate and carry speed efficiently.
• Shorter strut: reduces swing weight and gives the wing a more compact feel through gybes, tacks, rotations and wave manoeuvres.
• Refined profile distribution: less depth through the centre with more profile towards the quarter span delivers efficient power while improving stability when flagged.
• Optimised canopy tension and tip twist: keeps the canopy cleaner and the draft more controlled as wind strength changes.
• MOD3s canopy: lightweight performance canopy designed for low stretch, good draft stability and consistent response.
• Wide leading-edge handle: provides useful control and freedom of hand position when surfing or freeflying the wing.
• Moulded mini batten pockets: support canopy stability while improving durability around the batten areas.
• Updated window layout: improved visibility without unnecessarily compromising canopy performance.
• Fusion control system: choose between the Duotone Fusion Boom and Duotone Fusion Handles.

What's new on the 2027 Duotone Unit D/LAB?

Shorter strut for more compact handling

One of the most important shape changes is the shorter centre strut. Reducing the distance and mass extending behind the rider makes the wing feel more compact when it is moved rapidly from one position to another.

In a gybe or tack, that means less wing to swing around your body. For freestyle, the reduced swing weight helps when redirecting the wing through rotations. On a wave, it makes quick corrections easier without the wing dominating what the board and foil are doing beneath you.

The improvement is particularly noticeable on the bigger sizes, where reducing swing weight makes a large wing feel significantly less cumbersome.

Reduced leading-edge diameter for lower drag

The Unit D/LAB uses a smaller-diameter leading edge than the 2027 Unit SLS and original Unit. This is an important distinction rather than a cosmetic design choice.

A smaller leading edge presents less frontal area to the airflow. Less aerodynamic resistance means easier acceleration and less drag as riding speed increases. Riders using faster foils or regularly riding well powered are most likely to notice the difference.

The result is a wing that feels efficient rather than increasingly resistant as the apparent wind builds.

Refined profile distribution

Duotone has changed where the depth of the wing is positioned. The 2027 Unit D/LAB carries less profile depth through the centre and more towards the quarter-span area.

This allows the wing to produce efficient usable drive without relying on an excessively deep central profile. It also helps the wing remain settled when depowered, which is particularly valuable when you flag the wing and allow your foil to do the work on a wave or swell.

Optimised canopy tension and tip twist

Wing performance is not dictated by frame material alone. Canopy tension and the way the tips twist under load have a substantial effect on power delivery, depower and draft stability.

For 2027 these areas have been refined to produce a cleaner canopy and more predictable response. When a gust arrives, the aim is to keep the centre of effort controlled rather than allowing the wing to become vague or dramatically change character.

This matters particularly on a D/LAB wing because the exceptionally rigid frame transfers small changes in canopy behaviour directly to the rider.

Updated window layout

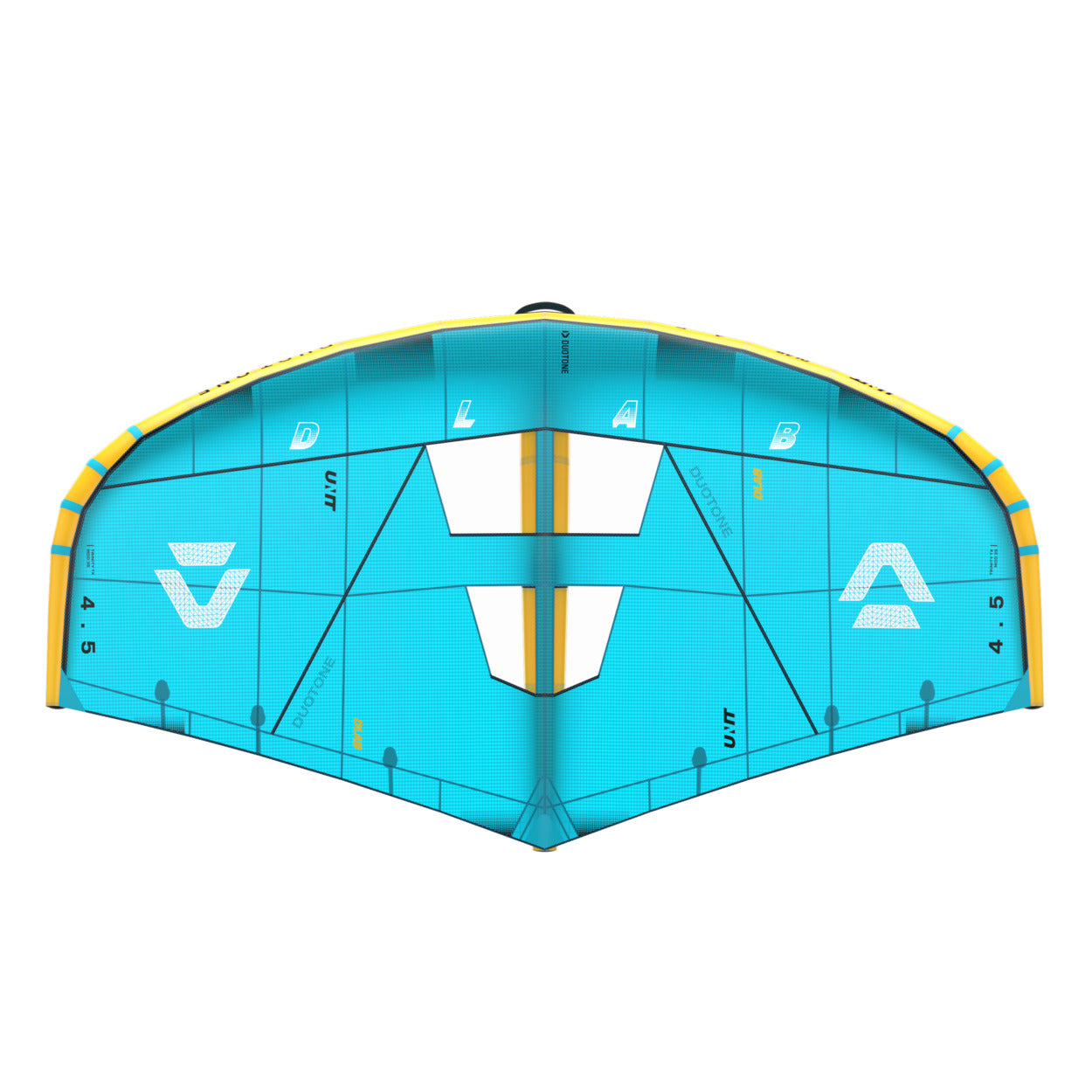

The new window arrangement provides improved visibility through the wing when entering transitions, checking downwind traffic or riding in a busy launch area.

The windows are positioned with performance in mind so that improved visibility does not require unnecessary changes to the high-performance canopy layout.

Full 82g/m² Aluula Gold D/LAB construction

The defining feature of the Unit D/LAB is the full Aluula Gold inflated frame. Duotone uses 82g/m² Aluula Gold through both the leading edge and centre strut rather than limiting it to selected panels.

The benefit is much more than simply producing a lighter wing.

When a wing is pumped or heavily loaded, a conventional inflated structure flexes. Some flex can be comfortable, but it also means that part of the rider's movement is absorbed by the structure before being transferred into the canopy.

The extremely stiff Aluula frame changes shape less under load. When you sheet in, pump or redirect the D/LAB, the response therefore feels immediate. This is what creates the exceptionally direct connection for which D/LAB wings are known.

Across Duotone's D/LAB wing construction, Aluula and the associated construction techniques can reduce total wing weight by up to around 15% compared with Original construction, depending on wing size.

That weight saving is particularly relevant on medium and larger wings. A few hundred grams positioned around a large inflatable structure has a much greater effect on swing weight and flagged handling than the same difference carried close to the rider.

What does the Aluula frame actually do for you?

• Faster response when pumping: less energy is lost through unwanted frame deformation.
• More precise sheeting: small changes in hand position create a clear response from the wing.
• Reduced swing weight: easier redirection through transitions and freestyle manoeuvres.
• Better powered control: the frame retains its designed geometry under high load.
• Lighter wave handling: less mass pulling against your leading hand when the wing is flagged.
• Efficient acceleration: high structural stiffness works with the reduced leading-edge diameter to create a low-drag performance feel.

MOD3s performance canopy

The 2027 Unit D/LAB uses Duotone's MOD3s canopy material. MOD3s is approximately 69g/m² compared with 87g/m² for MOD3, helping reduce overall canopy weight while maintaining the stability required from a high-performance wing.

Just as importantly, MOD3s is designed to minimise unwanted stretch under load. This helps the canopy retain its intended profile when heavily powered rather than becoming progressively deeper or less precise.

On a wing with such a stiff frame, controlling canopy deformation is particularly important. The combination of Aluula Gold and MOD3s is what allows the Unit D/LAB to feel crisp without the canopy undermining the precision of the frame.

In practical terms, MOD3s contributes to:

• Strong draft stability
• Smooth and predictable power delivery
• Reduced canopy weight
• A cleaner powered profile
• Good top-end control and depower
• Long-term performance durability

Wide leading-edge surfing handle

The Unit D/LAB uses a wide leading-edge handle for flagged riding. This may seem like a relatively small component, but it makes a meaningful difference when riding waves and swell.

Rather than forcing your hand into one narrow position, the wider handle gives you room to adjust your grip as the wing changes angle relative to the apparent wind. This reduces the need to control the wing aggressively and lets you concentrate on the foil.

For riders increasingly using their wing only to get onto a swell before freeflying it behind them, this is an important part of the Unit D/LAB's appeal.

Moulded mini batten pockets

Moulded mini batten pockets help support the trailing areas of the canopy. By reducing unnecessary canopy movement, they contribute to a more stable aerodynamic shape and the clean, controlled feeling of the wing when powered.

The moulded construction also helps improve longevity around areas that repeatedly experience load and movement.

How does the Unit D/LAB perform?

Freeride

For performance freeriding, the combination of a rigid frame and reduced leading-edge diameter is particularly effective. The wing accelerates quickly and remains efficient as the foil gains speed rather than feeling progressively more resistant.

If you enjoy riding powered, pushing a faster front wing or carrying speed through long carving transitions, the D/LAB's lower drag and precise sheeting become increasingly worthwhile.

Wave riding and freefly

Wave riding is one of the areas where the premium construction is easiest to appreciate.

Once you have used the wing to reach a wave, the objective changes: rather than wanting maximum power, you want the wing to interfere as little as possible.

The low frame and canopy weight reduce the mass hanging from your leading hand, while the refined profile distribution helps the wing remain stable as it is flagged. The wide leading-edge handle then gives you freedom to adjust hand position through turns.

For advanced riders linking swell, carving waves or freeflying behind the wing, this is a major reason to choose D/LAB rather than simply looking at its straight-line performance.

Freestyle and jumping

The shorter strut and low swing weight also make the Unit D/LAB a strong freestyle wing.

A rigid frame provides clear feedback when loading the wing before take-off, while rapid redirection is valuable through rotations and technical manoeuvres. The compact geometry reduces the feeling of the wing swinging around the rider during a trick.

It therefore remains a genuine all-round performance wing rather than becoming a specialist race or wave design.

Pumping and take-off

The frame reacts immediately when actively pumped, which is useful when trying to accelerate a board onto foil in marginal conditions.

How early you actually fly will still depend heavily on your board and foil. A stiff premium wing cannot compensate for a board that releases poorly or a foil that is inefficient for your weight and conditions.

For maximum efficiency, pairing the wing with an appropriate mid-length board and efficient foil creates a much more significant improvement than simply increasing wing size.

Gusts and top-end control

The refined canopy tension, profile and tip twist help control how the wing reacts through gusts and lulls. Because the frame itself moves very little, maintaining canopy stability becomes especially important.

The result is a direct wing, but one designed to remain predictable rather than nervous when heavily loaded.

Fusion Boom or Fusion Handles?

The 2027 Unit D/LAB uses Duotone's modular Fusion control system. You can choose between the continuous Duotone Fusion Boom or a pair of Duotone Fusion Handles.

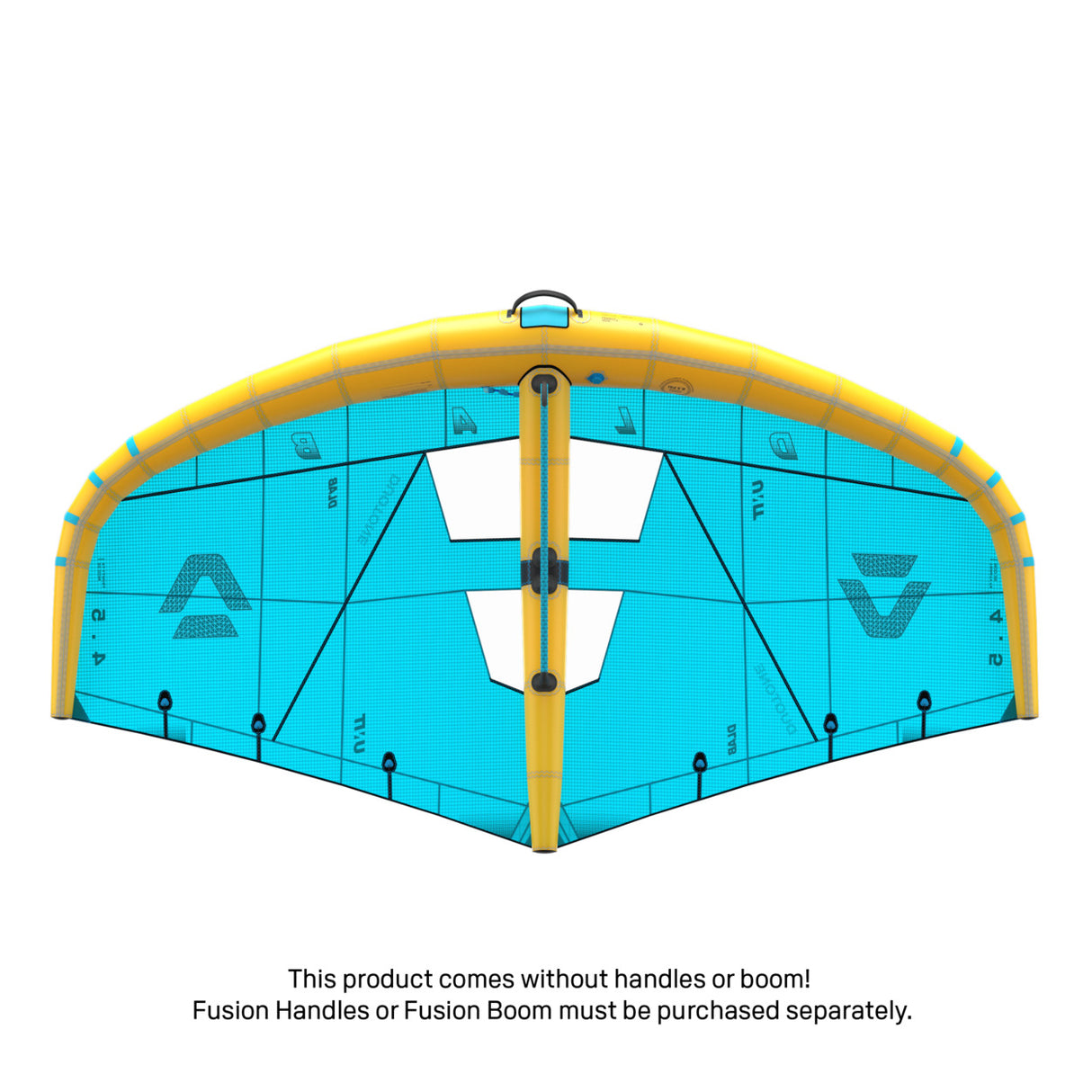

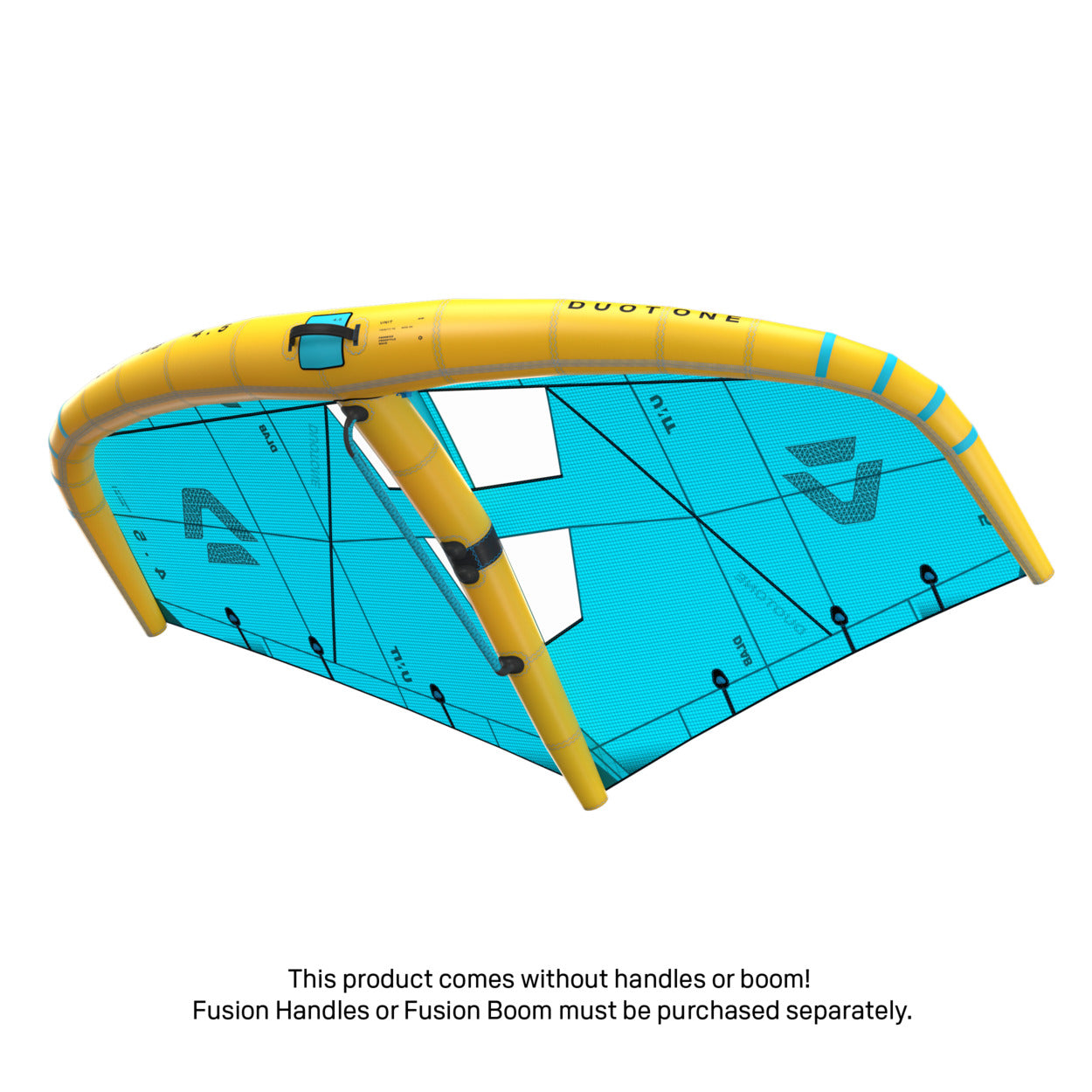

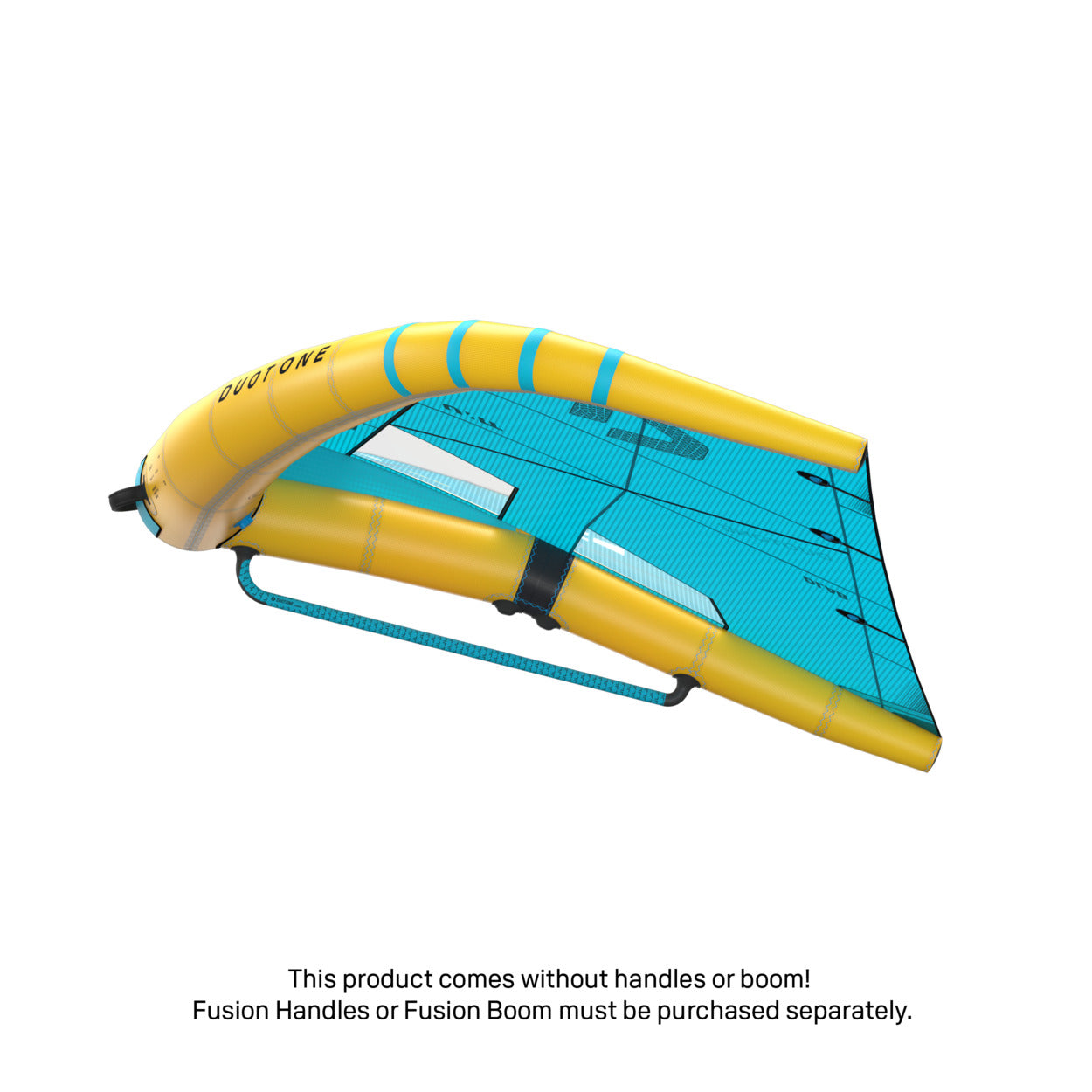

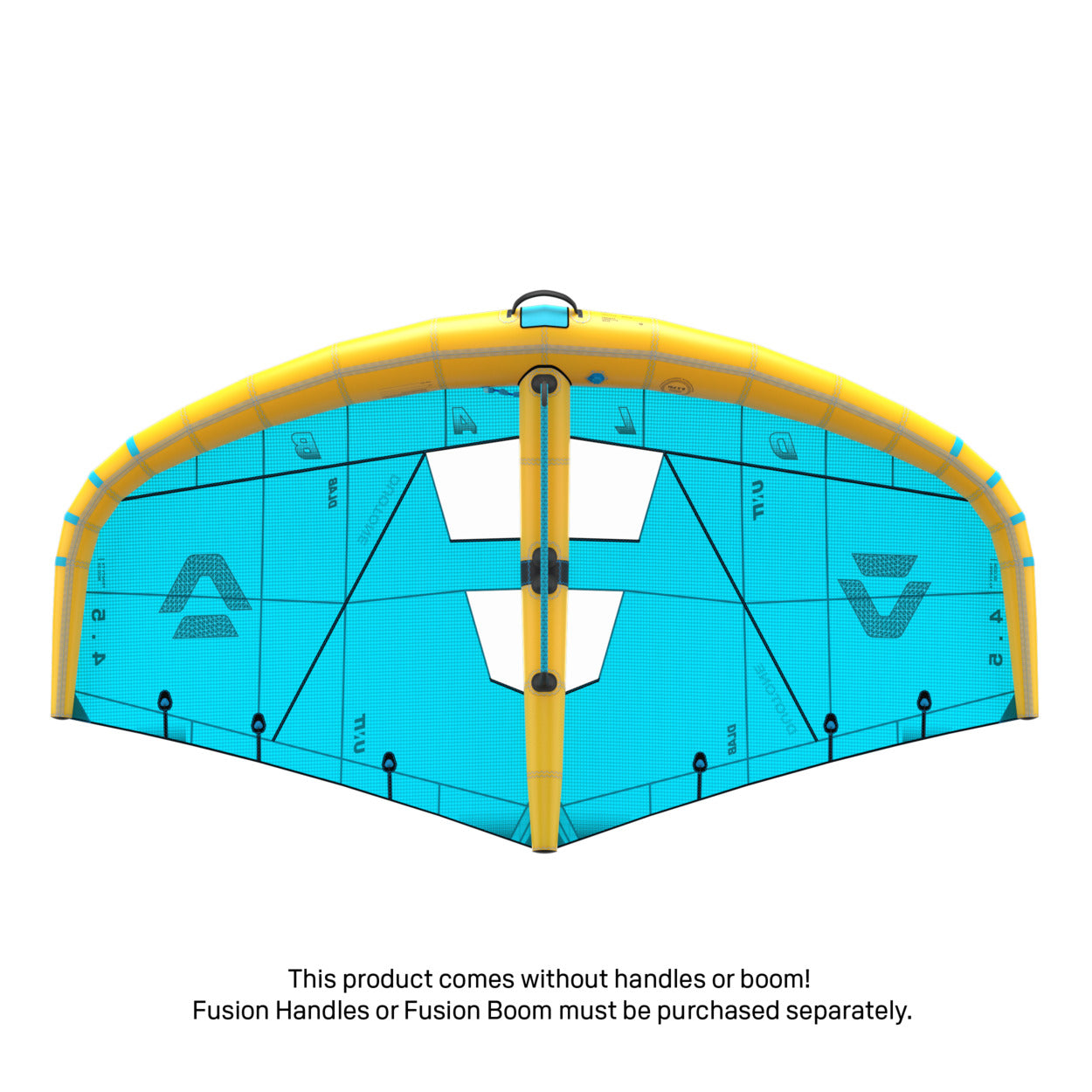

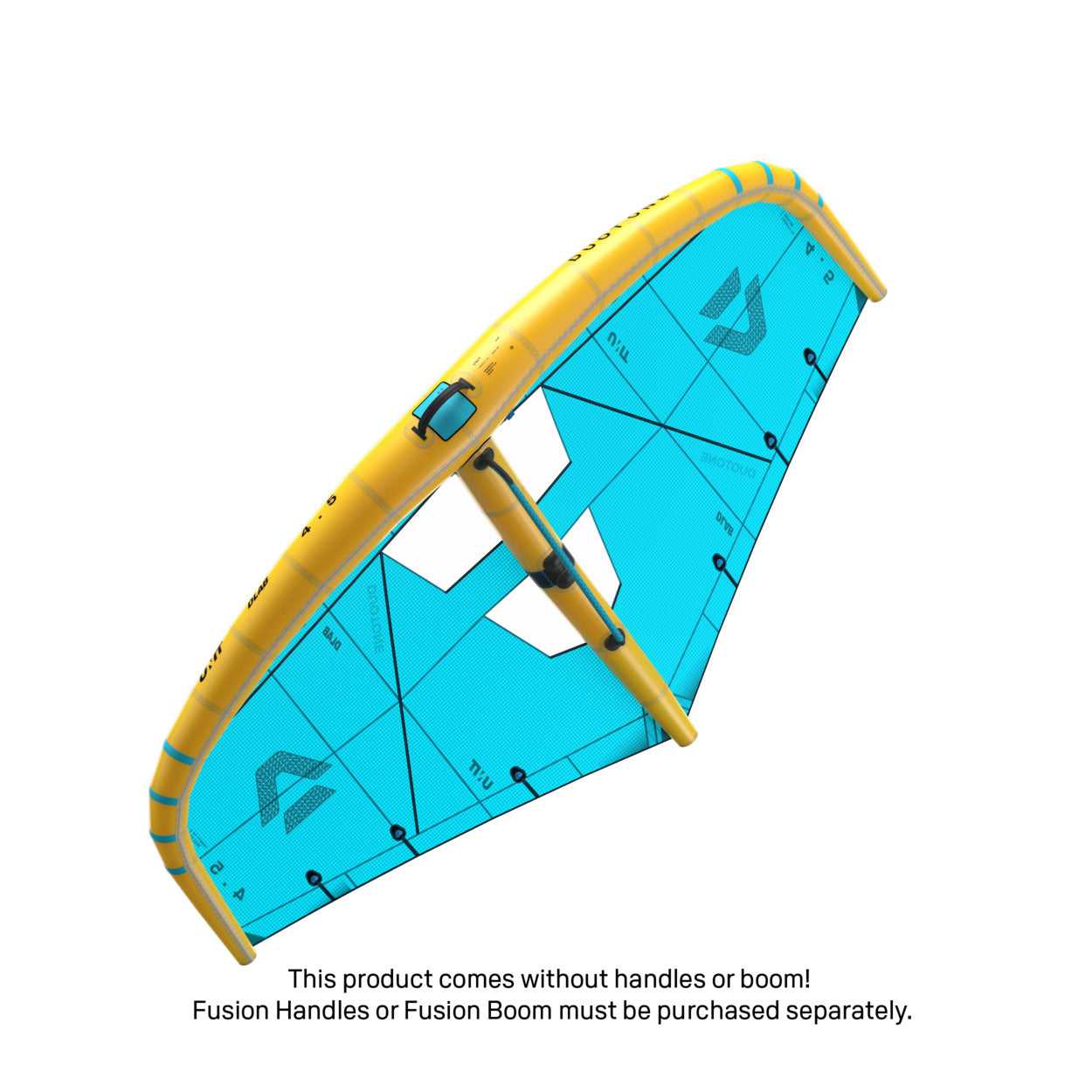

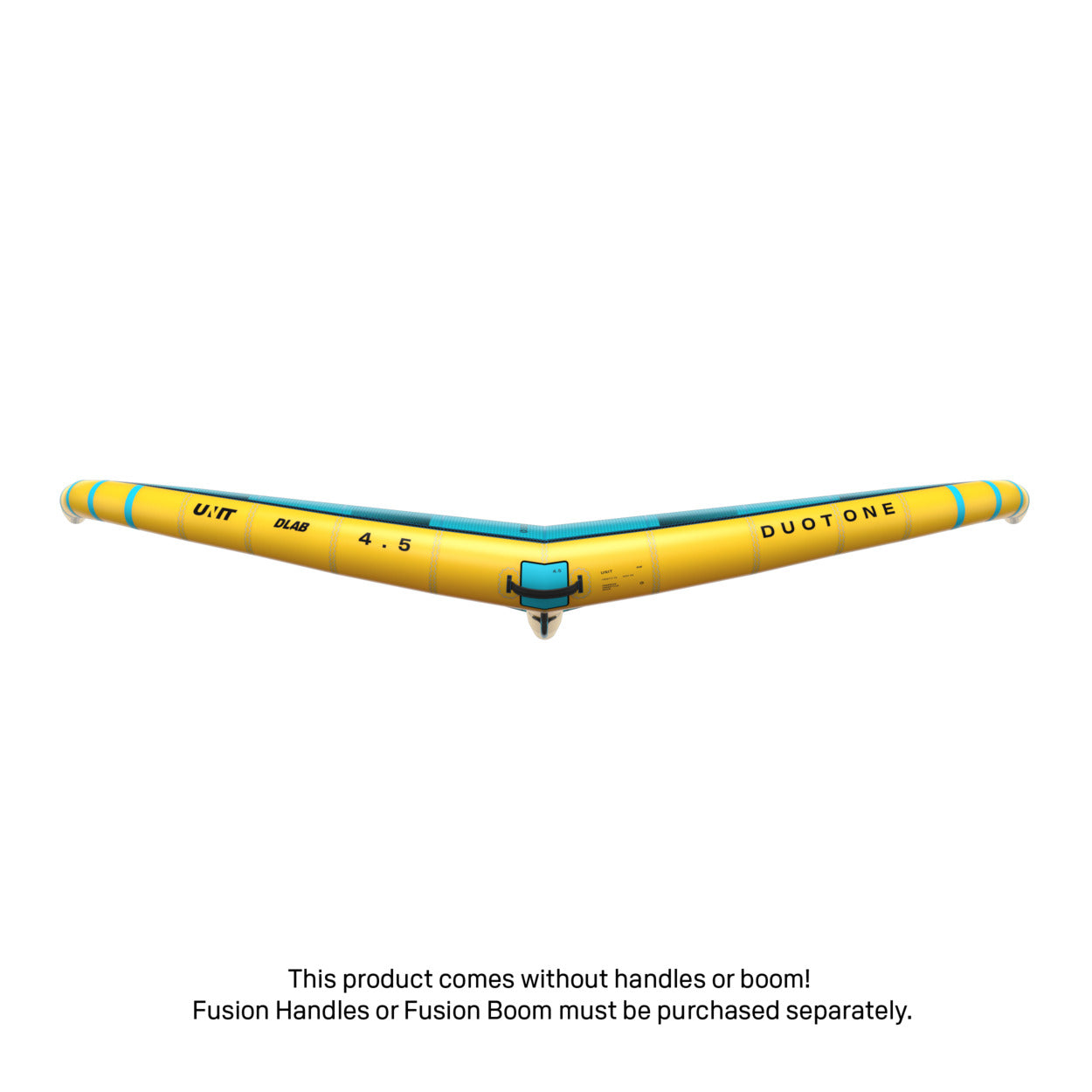

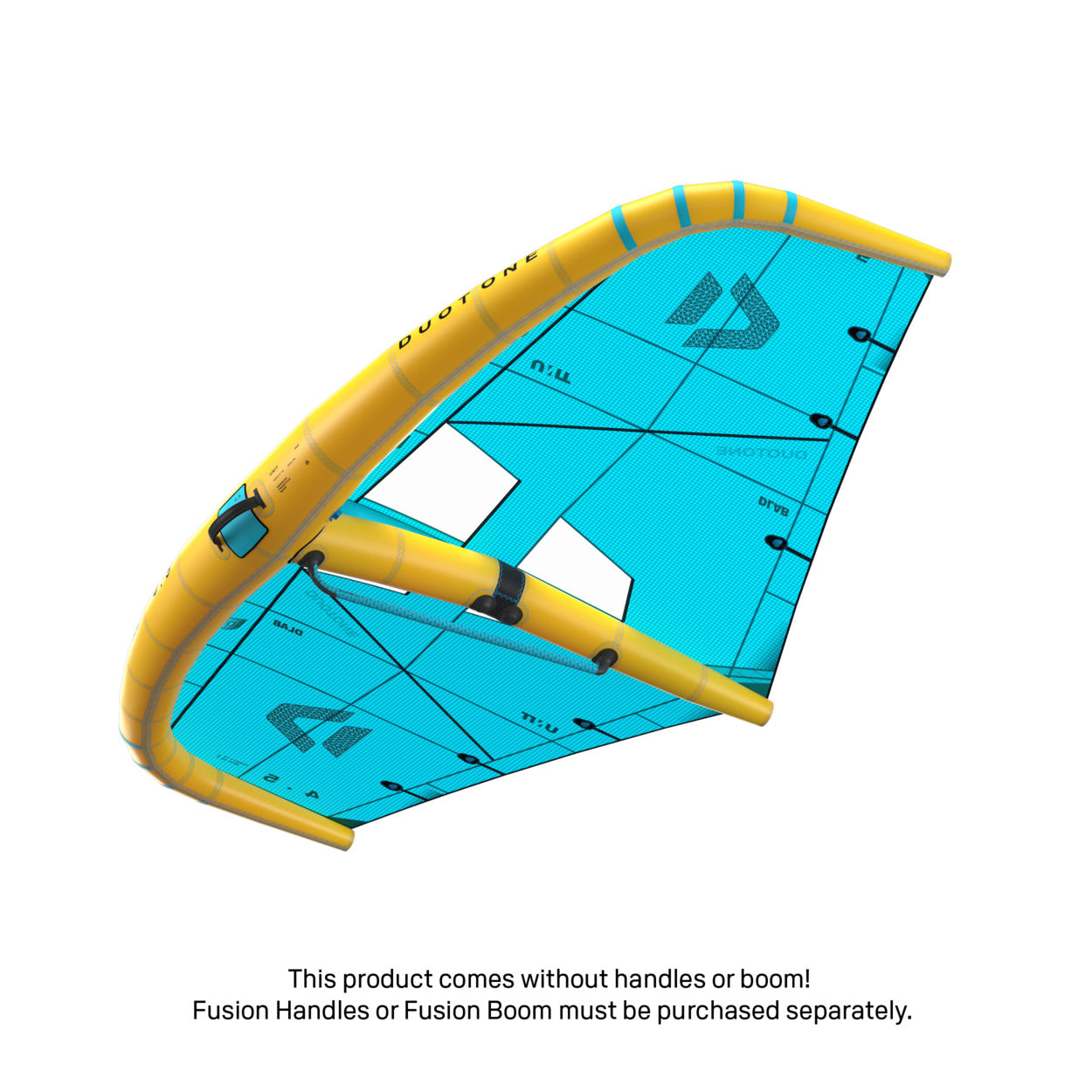

The wing is supplied without a Fusion Boom or Fusion Handles, so your chosen control system must be selected separately.

All Unit D/LAB sizes for 2027 run from 3.5m² to 6.5m², which means the complete range uses the Large Fusion control size.

• Fusion Boom L: 96cm – suitable for Unit 3.5m² through 6.5m².
• Fusion Handles L: suitable for Unit 3.5m² through 6.5m².

Both systems use lightweight carbon construction, an oval carbon tube and Duotone's ergonomic pistol-grip profile.

Choose the Fusion Boom if...

• You like being able to place your hands anywhere along the control area.
• You frequently slide or reposition your hands through manoeuvres.
• You prefer a boom-style connection when jumping or freestyling.
• You want to reach for the wing without locating a specific individual handle.

Choose Fusion Handles if...

• You prefer clearly defined front and rear hand positions.
• You like the familiar feel of individual wing handles.
• Compact packing dimensions are important.
• You prefer storing the controls separately from the wing.

Neither option automatically makes the wing faster. This is primarily about ergonomics and which control layout feels most natural to you.

2027 Duotone Unit D/LAB sizes and wind ranges

The published 2027 Unit D/LAB range starts at 3.5m² and runs through to 6.5m². The smaller 2.0m², 2.5m² and 3.0m² sizes offered elsewhere in the Unit family are not listed as Unit D/LAB sizes for 2027.

Published wind ranges are a guide rather than a guarantee. Rider weight, foil size and efficiency, board choice, technique, water state and whether you prefer to ride heavily or lightly powered will all affect the usable range.

Which Unit D/LAB size should you choose?

Do not choose wing size from rider weight or wind speed alone. Your board and foil have a major influence on the amount of wing power needed to take off.

A rider on an efficient mid-length board and modern low-drag foil may comfortably use a smaller wing than someone of identical weight using a shorter board and less efficient foil. Pumping technique can widen the difference further.

3.5m²

A dedicated high-wind wing for most riders and a particularly useful size for strong-wind coastal wave sessions. The compact D/LAB construction helps a small wing remain very controlled when conditions are powerful and unsettled.

4.0m²

A strong smaller-quiver option for riders who regularly foil in windy UK conditions. It offers substantial top-end while retaining enough usable range to avoid being limited purely to extreme days.

4.5m²

A highly useful performance size covering moderate through strong wind. For lighter riders it can become a central quiver wing, while heavier riders may use it as their strong-wind option.

5.0m²

For many UK riders this is likely to sit close to the centre of a quiver. Its published 10–25 knot range gives it broad usefulness, while the reduced weight keeps it manageable when the breeze strengthens.

5.5m²

Useful if you want more bottom-end than a 5.0m² without immediately moving into the largest wing sizes. It can also work well as the bigger half of a simple two-wing quiver.

6.0m²

This is where the D/LAB construction becomes particularly attractive. Reducing frame and canopy weight matters more as wing area increases, helping the 6.0m² feel less cumbersome when pumping, manoeuvring and flagging.

6.5m²

The largest Unit D/LAB for 2027. It is aimed at riders who genuinely need additional surface area but still want the low swing weight and rigid response of the flagship construction.

If you are between two sizes, contact us with your weight, current board, foil, existing wing sizes, riding ability and usual location. We can help work out whether the extra area will actually improve your take-off or simply create unnecessary overlap in your quiver.

Duotone Unit D/LAB vs Unit SLS vs Unit 2027

For 2027, Duotone offers three main Unit construction routes. They share the same broad freeride, freestyle and wave DNA, but the materials alter how each wing delivers its performance.

Why choose D/LAB over SLS?

The D/LAB makes sense if you specifically value reduced swing weight, lower drag and the most immediate possible power transfer. Wave riders, advanced freeriders and riders using faster foils are likely to appreciate those differences most.

The advantage also becomes more obvious as wing size increases. A light 6.0m² or 6.5m² frame has a greater effect on handling than saving the same proportion of weight from a much smaller wing.

Why choose Unit SLS instead?

The 2027 Unit SLS is likely to be the performance/value sweet spot for many committed riders.

Its PentaTX and Aluula centre-panel construction creates high stiffness and direct response, but the SLS retains the same leading-edge diameter as the original Unit. That helps it retain more base grunt and low-end drive.

If your priority is strong usable power and high performance rather than achieving the absolute minimum weight and drag, the SLS deserves serious consideration.

Where does Unit SLS Concept Blue fit?

The 2027 Duotone Unit SLS Concept Blue provides the same SLS position in the range while incorporating Duotone's Concept Blue material approach and undyed materials.

Choose it if you want the performance characteristics of the SLS construction but prefer the Concept Blue version rather than the standard colourways.

Why choose the standard Unit?

The 2027 standard Unit should not be dismissed simply because it sits below SLS and D/LAB in price.

The more forgiving flex of its inflated structure can actually make gusts feel smoother and the wing less demanding. For developing riders, or riders who value comfort and durability over the final increment of stiffness, it can be the better purchase.

For a more detailed breakdown, see our Duotone Unit 2027 vs Unit SLS vs Unit D/LAB comparison.

Who is the Unit D/LAB best suited to?

We would put the 2027 Unit D/LAB high on the shortlist if you:

• Already wing foil confidently and can feel meaningful differences between wing constructions.
• Regularly gybe and tack and want lower swing weight through transitions.
• Ride waves or swell with the wing flagged for significant periods.
• Ride powered and want less aerodynamic resistance at speed.
• Actively pump the wing and foil to get flying early.
• Are progressing into jumps or more technical freestyle.
• Use smaller, lower-volume or more performance-orientated foil boards.
• Want a premium quiver where handling and weight are more important than purchase price.

Who may be better with another Unit?

If you are still learning consistent flight, building your first complete setup or regularly dropping the wing onto hard surfaces, the additional spend on D/LAB may be better allocated elsewhere.

For a developing rider, moving to the correct board volume or a more suitable foil will usually make a larger difference than moving from SLS to D/LAB construction.

Look at the Unit SLS 2027 if you want a highly responsive performance wing with strong low-end power, or the standard Unit 2027 if you prioritise ease of use, forgiving power and value.

Recommended 2027 board pairings

The Unit D/LAB can work with a wide range of foil boards. The important thing is to choose a board whose strengths match the way you intend to use the wing.

Duotone Skybrid D/LAB – premium freeride, freefly and efficiency

For a premium setup focused on early release, low swing weight and efficient freeride, the Duotone Skybrid D/LAB Hollow Foil Board is one of the most logical pairings.

Its mid-length outline creates efficient glide before take-off, while its extremely light Hollow Shell Composite construction keeps board swing weight low once flying. Combined with the light Unit D/LAB above you, the whole setup feels much smaller and more reactive than its volume would suggest.

This is particularly attractive for riders wanting light-wind efficiency without moving to an oversized conventional board and wing.

Duotone Skybrid SLS – performance with a more accessible construction

The 2027 Duotone Skybrid SLS offers much of the same mid-length versatility in Biax Carbon PVC Sandwich construction.

It combines early take-off, useful stability and good control at speed, making it an excellent all-round partner for riders who want D/LAB wing performance without necessarily choosing a D/LAB board as well.

Duotone Sky Style SLS – freestyle and compact all-round performance

If freestyle, jumping and a compact board feel are higher priorities, consider the 2027 Duotone Sky Style SLS.

Its compact outline, step tail and high rocker are designed around rapid release, pop, rotations and control through landings. Pairing it with the rapid response of the Unit D/LAB creates a highly performance-focused freestyle and freeride setup.

Duotone Sky Style – accessible freestyle progression

The 2027 Duotone Sky Style uses the same broad shape direction in a more accessible Vacuum Sandwich construction.

It is a sensible pairing if you want the premium feel of the D/LAB wing but do not need the additional cost of an SLS board.

Duotone Trace SLS – dedicated wave performance

For advanced riders putting wave performance ahead of general freeride stability, the 2027 Duotone Trace SLS is the more specialised choice.

Its narrower surf-orientated outline, pointy nose, high-apex bevelled rails and step tail are designed to increase carving clearance and reduce swing weight. Paired with the Unit D/LAB's low flagged weight, it creates a very wave-focused setup for riders comfortable on lower-volume, narrower boards.

For a broader comparison of the new shapes, see our Duotone 2027 foil board guide.

Choosing a foil for the Unit D/LAB

The Unit D/LAB will work with everything from a forgiving freeride foil to a high-performance low-drag setup. Your foil should be chosen around the discipline rather than simply matched to the most expensive wing.

• Freeride and progression: look for predictable take-off, a broad speed range and forgiving pitch behaviour.
• Wave and freefly: prioritise manoeuvrability, efficient pumping and the ability to connect sections without excessive rider input.
• Light wind: efficient pump and glide often matter more than simply increasing front-wing area.
• Performance freeride: lower-drag foils allow you to take fuller advantage of the Unit D/LAB's speed and reduced aerodynamic resistance.

Browse our foil range, front wings and complete foils if you are building or upgrading the underwater part of your setup.

Complete your Unit D/LAB setup

The control system is the first thing to add because Fusion controls are not supplied with the wing.

• Duotone Fusion Boom: choose the Large 96cm version for all 2027 Unit D/LAB sizes.
• Duotone Fusion Handle Set: choose Large for all 2027 Unit D/LAB sizes.
• Duotone Pump: useful if you need a dedicated manual wing pump.
• Duotone Multi Pump: a versatile option if you use more than one type of Duotone inflatable equipment.
• Duotone Wrist Leash: useful as a replacement or spare where required.

You can also browse our wider wing accessories and wing pump collection.

What is supplied and what is separate?

Confirmed for the 2027 Unit range: the wing is supplied without Fusion Handles or Fusion Boom. Choose your preferred compatible control system separately.

For the Unit D/LAB 3.5m² to 6.5m² range, use either the Fusion Boom L / 96cm or Fusion Handles L.

Technical specifications

Try before you buy

The difference between Original, SLS and D/LAB construction is difficult to understand from specifications alone. Frame stiffness, swing weight and flagged handling are much easier to appreciate on the water.

If you are deciding whether the D/LAB upgrade is worthwhile, our Try It Now service at The SUP Co x Lymington is a useful place to start. Test equipment and suitability vary, so contact us before travelling if you want to compare a specific wing, board or foil.

Useful Duotone 2027 buying guides

• Duotone Wing & Foil 2027 Range Guide – understand how the new wings, boards and foils fit together.
• Duotone Unit 2027 vs Unit SLS vs Unit D/LAB – choose the right Unit construction.
• Duotone Foil Boards 2027 Guide – compare the current board shapes and disciplines.
• Duotone Unit 2027 vs 2026 – useful if you are deciding whether upgrading from a previous Unit makes sense.

Frequently asked questions

The SUP Company verdict

The 2027 Unit D/LAB is the Unit to choose when you already know that weight, structural stiffness and aerodynamic efficiency matter to your riding. Its advantage is not one headline feature but the way the entire wing works together: the full Aluula Gold frame responds immediately, the smaller leading edge reduces drag, the shorter strut cuts swing weight and the refined canopy remains controlled as power changes.

For wave riders, that translates into an exceptionally light wing when flagged. For freeriders, it gives rapid acceleration and less drag at speed. For freestyle riders, it provides quick redirection and a very direct feel when loading the wing.

It is also important not to oversell D/LAB simply because it sits at the top of the range. The Unit SLS will be the smarter performance/value choice for many riders, while the standard Unit remains an excellent option where forgiving power and accessibility matter more than minimum weight.

If you want the most technically advanced, lowest-drag and most direct Unit available for 2027, however, the Duotone Unit D/LAB is the clear choice at the top of the range.

Browse the complete Duotone Wing & Foil collection or contact The SUP Company if you want help matching the Unit D/LAB to the right 2027 board, foil and wing sizes for your weight and local conditions.
